Main Relay: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the glove box. <Ref. to REMOVAL , Glove Box.>
  3. Remove the main relay from relay block.

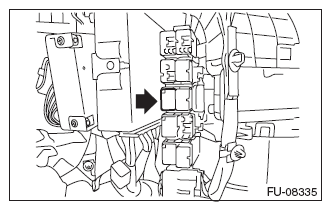

Fig 1: Locating Main Relay From Relay Block
G10264883Courtesy of SUBARU OF AMERICA, INC.
