Intake Side

  1. Install the oil flow control solenoid valve.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

  2. Apply liquid gasket to the two bolts securing oil return cover.

    Liquid gasket:

    THREE BOND 1324 (Part No. 004403042) or equivalent

  3. Attach the oil return cover and gasket.

    Tightening torque:

    9 N.m (0.9 kgf-m, 6.6 ft-lb)

    NOTE: Use a new gasket.

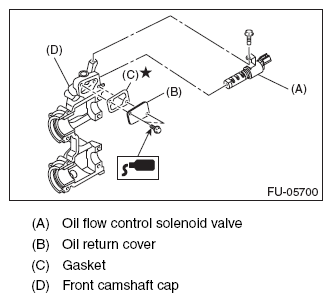

    Fig 1: Identifying Oil Flow Control Solenoid Valve And Front Camshaft Cap
    G10264858Courtesy of SUBARU OF AMERICA, INC.
