Accelerator Pedal: Removal

  1. Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note.>
    NOTE: For the 12 volt engine restart battery of HEV model, disconnect the ground terminal from 12V engine restart battery sensor.
  2. Disconnect the connector (A).
  3. Remove the nut (B) securing accelerator pedal assembly, and remove the accelerator pedal assembly.

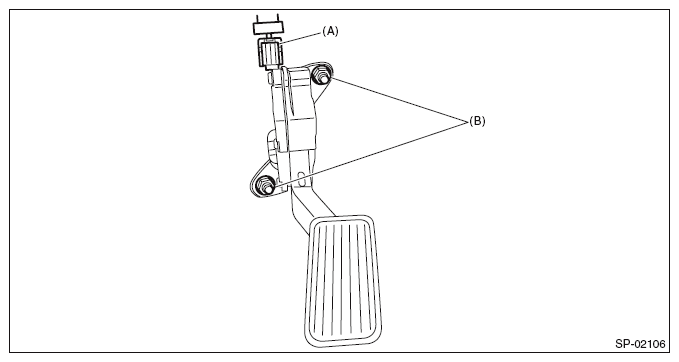

    Fig 1: Locating Accelerator Pedal Assembly Mounting Nuts
    G09486936Courtesy of SUBARU OF AMERICA, INC.
