RH Side

  1. Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note.>
    NOTE: For the 12 volt engine restart battery of HEV model, disconnect the ground terminal from 12V engine restart battery sensor.
  2. Remove the air cleaner case. (Gasoline engine model) < Ref. to REMOVAL , Air Cleaner Case.>
  3. Remove the 12 volt engine restart battery. (HEV model) < Ref. to 12 VOLT ENGINE RESTART BATTERY , REMOVAL, Battery.>
  4. Remove the battery cable assembly from the battery cable bracket No. 2. (HEV model)

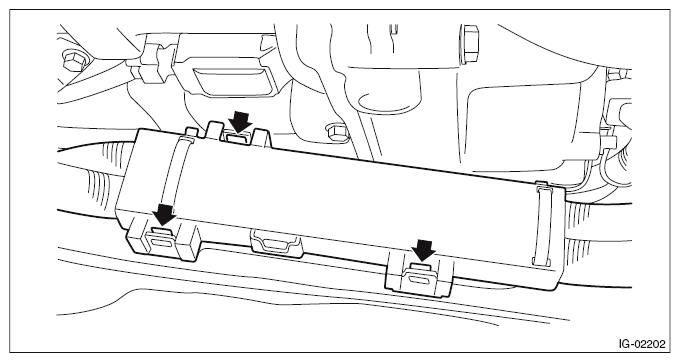

    Fig 1: Locating Air Cleaner Case Clip
    G09486941Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect the connector from ignition coil.
  6. Remove the ignition coil.
    Fig 2: Locating Connector From Ignition Coil
    G08550395Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the spark plug with a spark plug socket.
