Model Without Push Button Ignition Switch

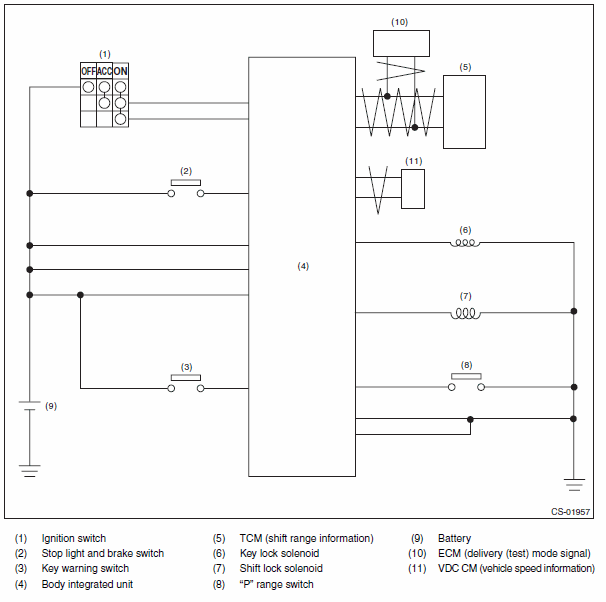

Fig 1: AT Shift Lock Control System - Wiring Diagram (Without Push Button Ignition Switch)
G09487557Courtesy of SUBARU OF AMERICA, INC.
