MT Gear Shift Lever: Disassembly

Remove the lock wires.

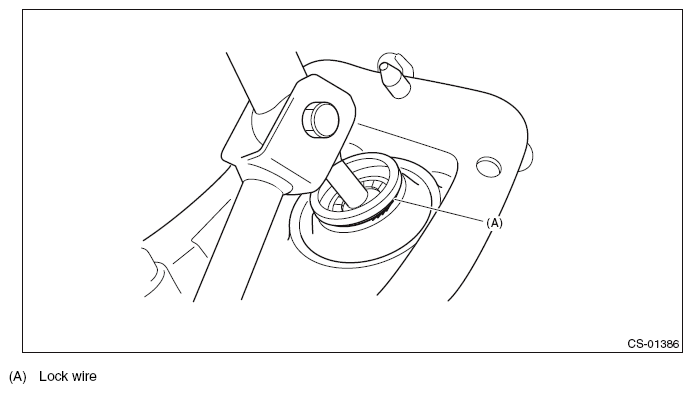

Fig 1: Identifying MT Gear Shift Lever Lock Wire
Courtesy of SUBARU OF AMERICA, INC.
Remove the rod from gear shift lever.

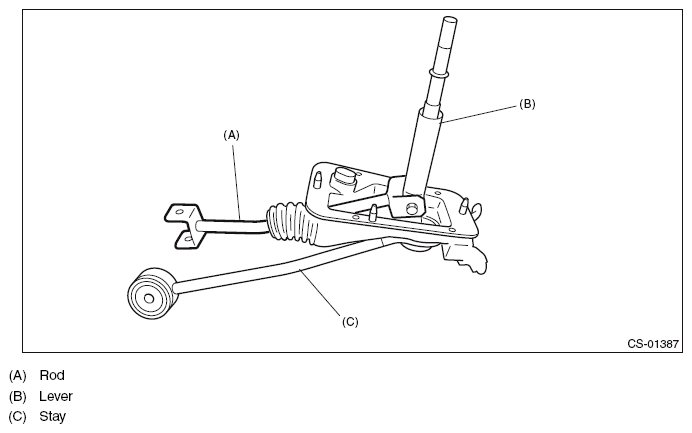

Fig 2: Identifying MT Gear Shift Lever Stay, Lever And Rod
Courtesy of SUBARU OF AMERICA, INC.
Separate the rod and inner boot.
Remove the snap ring from the stay.

Fig 3: Identifying MT Gear Shift Lever Stay Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Separate the gear shift lever and the stay.

Fig 4: Identifying Gear Shift Lever And Stay
Courtesy of SUBARU OF AMERICA, INC.
Remove the boot and bushing from the gear shift lever.

Fig 5: Identifying Gear Shift Lever Bushing And O-Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the spring pin, and then remove the bushing and snap ring.

Fig 6: Identifying MT Gear Shift Lever Bushing, Snap Ring And Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Remove the boss from the joint.

Fig 7: Identifying MT Gear Shift Lever Joint Boss
Courtesy of SUBARU OF AMERICA, INC.
Remove the bushing and spacer from the boss.

Fig 8: Identifying MT Gear Shift Lever Bushing And Spacer
Courtesy of SUBARU OF AMERICA, INC.
Remove the bushing and cushion rubber from the stay.

Fig 9: Identifying MT Gear Shift Lever Stay, Bushing And Cushion Rubber
Courtesy of SUBARU OF AMERICA, INC.
