Indicator ASSY

  1. Remove the boot assembly from the indicator assembly.
CAUTION: When removing the assembly, be careful not to damage the boot assembly claws and adjacent parts.

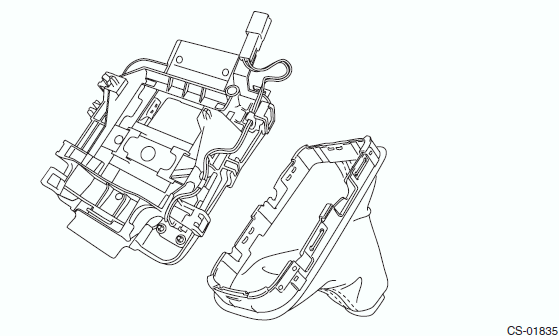

Fig 1: Identifying Indicator Assembly
G00548493Courtesy of SUBARU OF AMERICA, INC.
