On-Vehicle Inspection
- Function inspection of accelerator pedal sensor assembly
- Connect the SSM3 to the DLC.
- Turn the ignition switch to ON.
- According to the display, select [ECM data monitor] →[Accelerator Sensor No1 Voltage and Accelerator Sensor No2 Voltage], and check the value when the accelerator pedal is operated.
Voltage

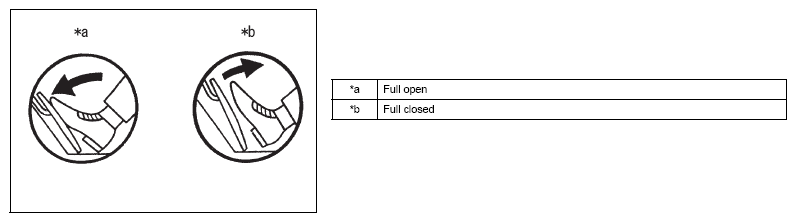

Pedal condition Accelerator No. 1 sensor voltage Accelerator No. 2 sensor voltage Full closed 0.5 to 0.8 V 0.5 to 0.8 V Full open 2.4 to 3.5 V 2.4 to 3.5 V Full closed →Full open →Full closed Voltage shall change continuously. Voltage shall change continuously.
