Air/Fuel Ratio Sensor (Fa20): Removal

  1. Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
  2. Removal of air/fuel ratio sensor
    1. Disconnect the connector for air/fuel ratio sensor and the 2 clamps.

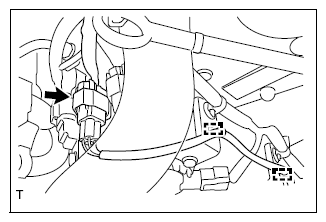

      Fig 1: Locating Air/Fuel Ratio Sensor Connector
      G10213079Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the air/fuel ratio sensor from the exhaust manifold.
      Fig 2: Locating Air/Fuel Ratio Sensor In Exhaust Manifold
      G08554055Courtesy of SUBARU OF AMERICA, INC.
