Ignition Coil And Spark Plug (Fa20): Installation

1. Install the two spark plugs.

   Standard value: T=17N.m {174kgf.cm} {12.5ft.lbf}

1. Using 2 bolts, install the ignition coil assembly.

   Standard value: T=8.5N.m {87kgf.cm} {6.3ft.lbf}

2. Connect 2 connectors of the ignition coil assembly.

1. Install the two spark plugs.

   Standard value: T=17N.m {174kgf.cm} {12.5ft.lbf}

1. Using 2 bolts, install the ignition coil assembly.

   Standard value: T=8.5N.m {87kgf.cm} {6.3ft.lbf}

2. Connect 2 connectors of the ignition coil assembly.

1. Using 2 bolts, install the intake manifold protector (bank 2 side).

   Standard value: T=19N.m {194kgf.cm} {14.0ft.lbf}

2. Install the fuel hose bracket.

   Standard value: T=7.5N.m {76kgf.cm} {5.5ft.lbf}

1. Using the SST, lift the engine assembly.

   SST 99099AJ000, 18679AA020

2. Remove the SST.

   SST 18632AA020

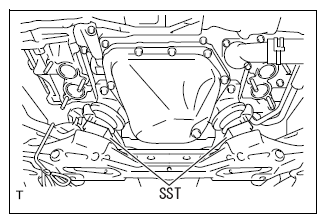

   Fig 1: Removing SST

   Courtesy of SUBARU OF AMERICA, INC.

1. Install two new nuts of engine mounting.

   Standard value: T=60N.m {612kgf.cm} {44.2ft.lbf}

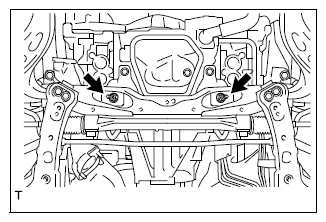

   Fig 2: Locating Engine Mounting Nuts

   Courtesy of SUBARU OF AMERICA, INC.
2. Remove the rope which secures the joint pipe to the front suspension crossmember sub-assembly.

1. Remove the SST from the vehicle.

   SST 99099AJ000, 18679AA020

2. Remove the SST from the cylinder block.

   SST 12281-38150, 90119-14120

3. Connect the engine wiring with the clamp.

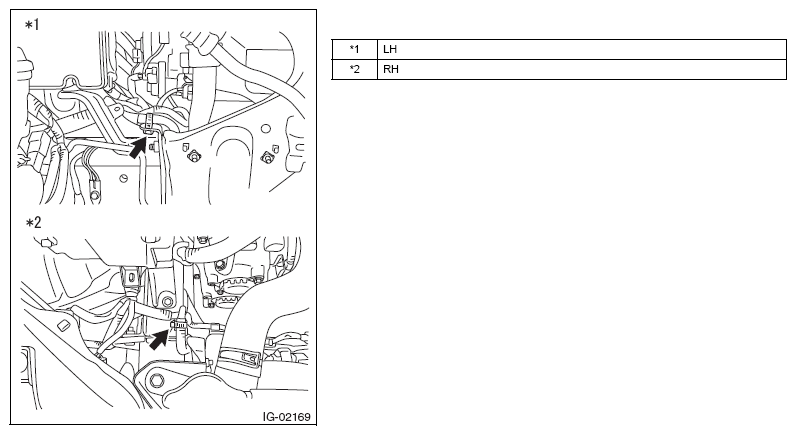

   Fig 3: Locating Engine Wiring Clamp

   Courtesy of SUBARU OF AMERICA, INC.

1. Connect the engine wiring with the bolt and three clamps.

   Standard value: T=11N.m {112kgf.cm} {8.1ft.lbf}

2. Using 4 clamps, connect the engine wire.

Standard value: T=6.0N.m {61kgf.cm} {4.4ft.lbf}
