Fuel Pump Assembly (Fa20/High Fuel Pressure): Removal

Intake manifold removal
(Refer to DISASSEMBLY )
Fuel delivery pipe No. 2 removal (Refer to REMOVAL )
Disconnection of fuel delivery pipe sub-assembly
1. Remove the union bolt and gasket to disconnect the fuel delivery pipe sub-assembly.

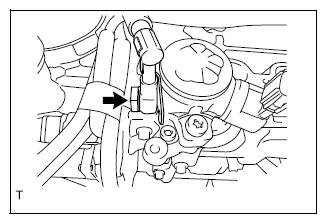

  Fig 1: Locating Fuel Delivery Pipe Sub-Assembly Union Bolt
  Courtesy of SUBARU OF AMERICA, INC.
Fuel pump assembly removal
1. Remove the two bolts with a TORX PLUS socket wrench 40IP to remove the fuel pump assembly.

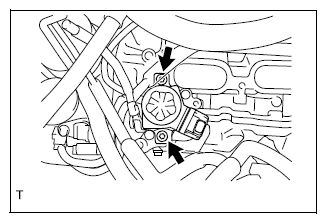

  Fig 2: Locating Fuel Pump Assembly Bolts
  Courtesy of SUBARU OF AMERICA, INC.
Fuel pump lifter removal
1. Remove the fuel pump lifter from the pump drive case Assembly.

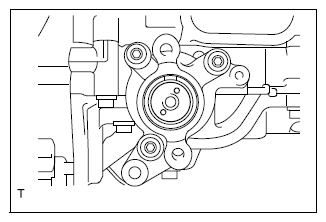

  Fig 3: Removing Fuel Pump Lifter
  Courtesy of SUBARU OF AMERICA, INC.
Pump drive case Assembly removal
1. Remove the three bolts and remove the pump drive case Assembly.

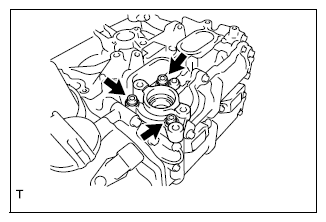

  Fig 4: Locating Pump Drive Case Assembly Bolts
  Courtesy of SUBARU OF AMERICA, INC.
