Engine Control Computer (Fa20): Removal
- Disconnection of the battery ground terminal (Refer to
WORKING PRECAUTIONS AND NOTES
)
- Removal of instrument side panel RH (Refer to
DISASSEMBLY
)
- Removal of glove compartment door assembly (Refer to
DISASSEMBLY
)
- Removal of control module relay assembly (without smart entry) (Refer to
KEY LOCK UNIT
)
- Removal of engine control computer
- Disconnect 4 connectors for engine control computer.
Courtesy of SUBARU OF AMERICA, INC.

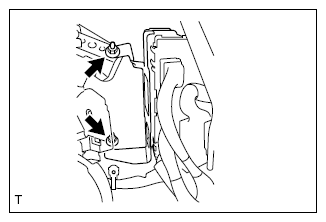

- Remove 2 nuts, and remove the engine control computer.
Courtesy of SUBARU OF AMERICA, INC.
- Removal of engine control computer bracket

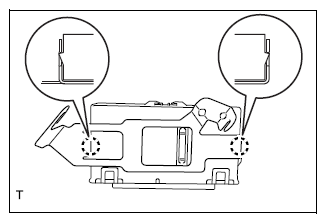

- Release 2 claws, and remove the engine control computer bracket.
Courtesy of SUBARU OF AMERICA, INC.
