Unit Inspection

  1. Inspection of knock control sensor
    1. Measure the resistance between the terminals.

      Resistance

      Inspection terminals Inspection conditions Standard value
      1 - 2 20°C {68°F} 532 to 588 kΩ

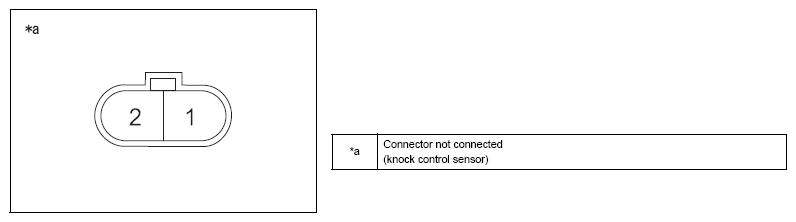

      Fig 1: Knock Control Sensor Connector Terminal Identification
      G10213073Courtesy of SUBARU OF AMERICA, INC.
