Exploded View

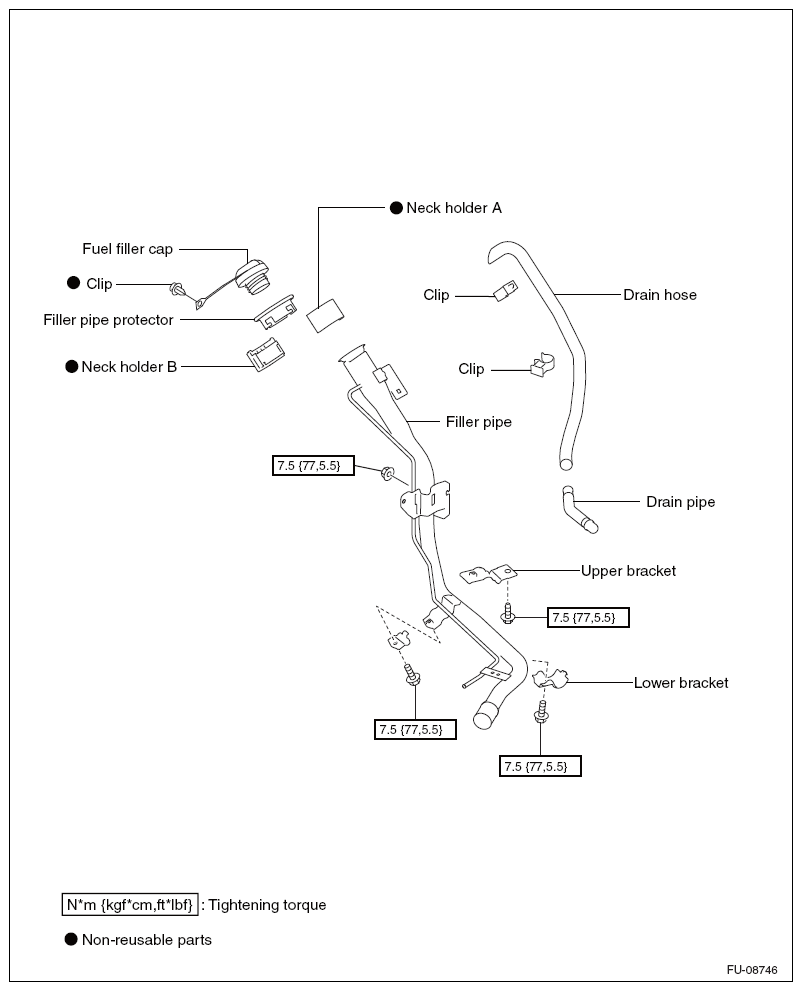

Fig 1: Exploded View Of Filler Pipe With Torque Specifications (FA20)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
