Exploded View

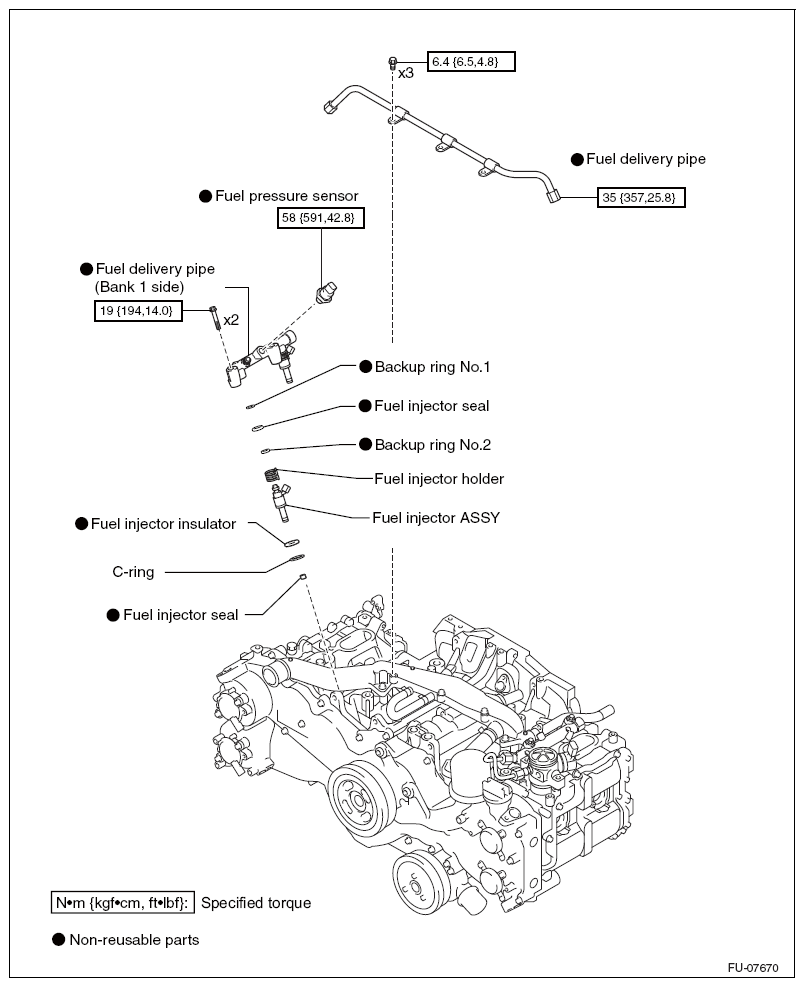

Fig 1: Exploded View Of Fuel Pressure Sensor With Torque Specifications (FA20)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
