Fuel Pump Control Computer (Fa20): Removal

Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
Disconnection of front door opening trim weather strip RH (Refer to DISASSEMBLY )
Front door scuff plate RH removal (Refer to DISASSEMBLY )
Separate type rear seat cushion Assembly removal (Refer to DISASSEMBLY )
Removal of luggage compartment trim cover INN RH (Refer to DISASSEMBLY )
Removal of luggage compartment trim side cover RH (Refer to DISASSEMBLY )
Removal of fuel pump control computer assembly
1. Disconnect the fuel pump control computer connector.
2. Remove the nut.

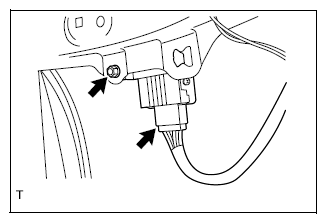

  Fig 1: Locating Fuel Pump Control Computer Connector And Nut
  Courtesy of SUBARU OF AMERICA, INC.
3. Push in the stud bolt of fuel pump control computer assembly.

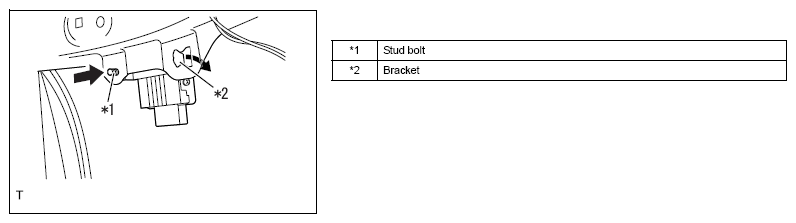

  Fig 2: Locating Fuel Pump Control Computer Assembly Bracket And Stud Bolt
  Courtesy of SUBARU OF AMERICA, INC.
4. Slide the fuel pump control computer assembly toward the rear of the vehicle to disengage the bracket and remove the fuel pump control computer assembly.
  CAUTION: If impact is applied to the fuel pump control computer assembly, do not reuse it.
