Unit Inspection

Fuel injector Assembly check

CAUTION: This procedure must be used only when judging short circuit and open circuit. It cannot be used for judging defective operation.

Resistance check

Measure the resistance between the terminals.

Resistance

Inspection terminals	Inspection conditions	Standard value
1 - 2	20°C {68°F}	1.9 Ω

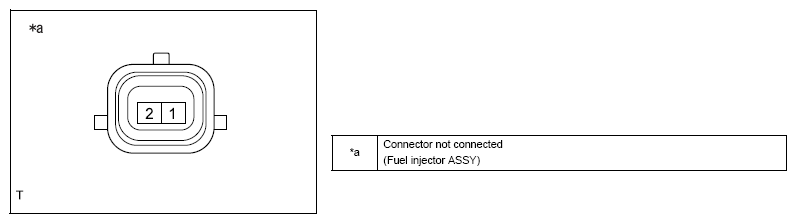

Fig 1: Fuel Injector Assembly Connector Terminal Identification

Courtesy of SUBARU OF AMERICA, INC.
