Exploded View

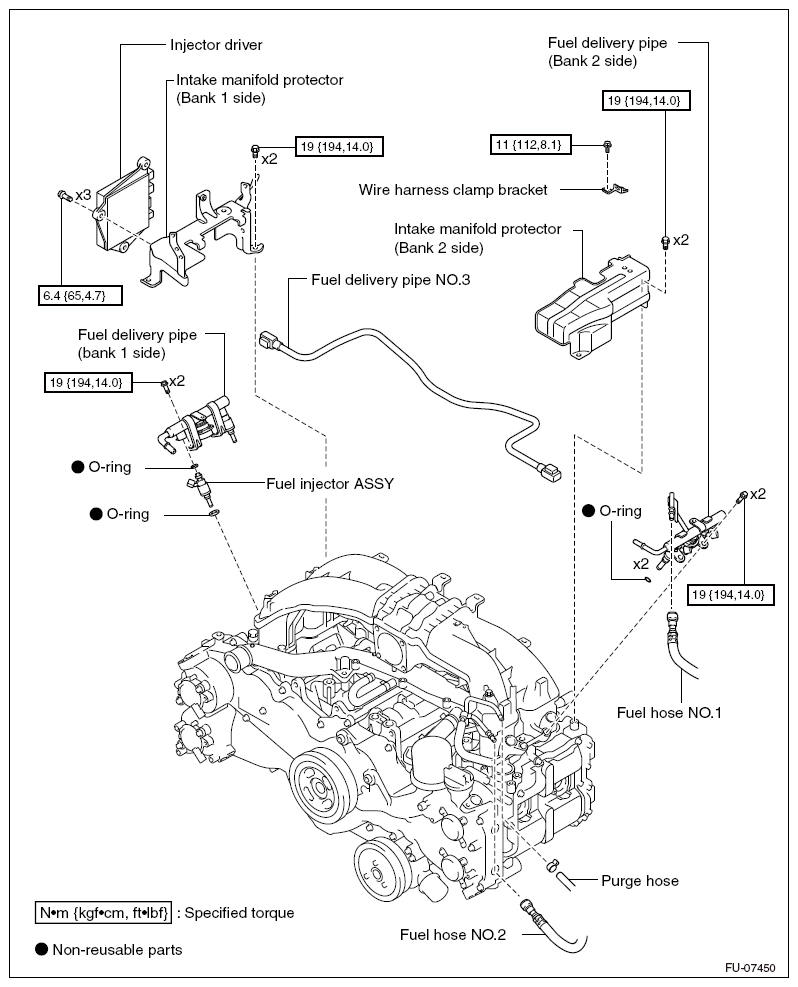

Fig 1: Exploded View Of Injector Assembly With Torque Specifications (FA20/Port Fuel Injection)
G08552520Courtesy of SUBARU OF AMERICA, INC.
