Injector Driver (Fa20): Installation

Injector driver installation
CAUTION:
- Do not apply any impact to the injector driver.
- When the mounting surface of injector drive is dirty, faulty grounding may be caused. Degrease and wash the mounting surfaces of injector driver and engine before installing the injector driver.
1. Install the injector driver with the three bolts.
  Standard value: T=6.4N.m {65kgf.cm} {4.7ft.lbf}
2. Connect the three connectors with lock and normal connector to the injector driver and move the lock lever as shown in the figure to lock the three connectors with lock.

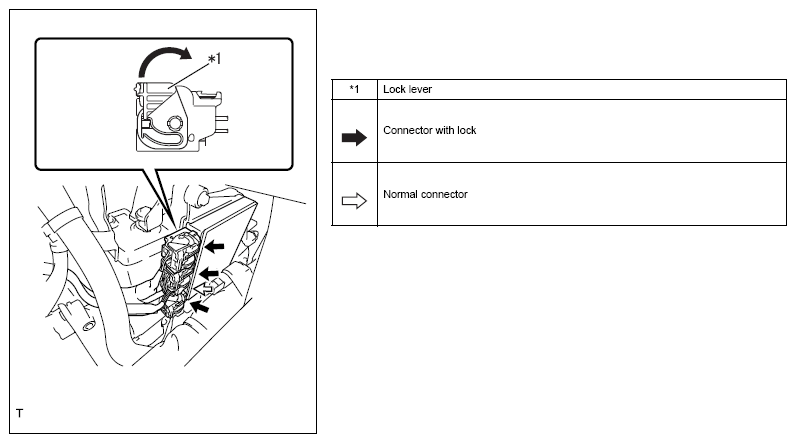

  Fig 1: Moving Injector Driver Lock Lever
  Courtesy of SUBARU OF AMERICA, INC.

  CAUTION: For connector with lock, connect the connector securely to lock it.
Connection of the battery ground terminal
Standard value: T=6.0N.m {61kgf.cm} {4.4ft.lbf}
