Battery Current Sensor: Removal

After turning the ignition switch to OFF, you may have to wait for a while before disconnecting the battery terminals. Check appropriate precautions for battery terminal disconnection before proceeding. (Refer to WORKING PRECAUTIONS AND NOTES )

1. Disconnect the connector.
   Fig 1: Locating Battery Current Sensor Assembly Connector

   Courtesy of SUBARU OF AMERICA, INC.
2. Undo the nut and disconnect the engine wire from the battery current sensor assembly.
   CAUTION: The power windows are equipped with an index function that is linked to the opening and closing of the doors and allows the glass to be opened and closed a little. The molding may be damaged when the doors are opened or closed after disconnecting the battery ground terminal when the glass is completely closed. Therefore, always disconnect the battery ground terminal with the driver's or passenger's seat door open (with the glass lowered to a position that allows free door opening and closing).

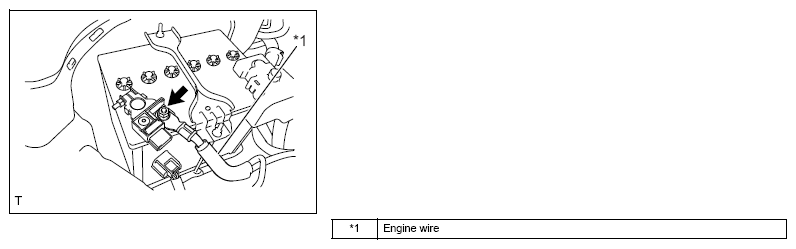

   Fig 2: Locating Engine Wire Nut

   Courtesy of SUBARU OF AMERICA, INC.
3. Loosen the nut and remove the battery current sensor assembly.

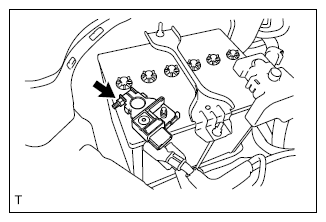

   Fig 3: Locating Battery Current Sensor Assembly Nut

   Courtesy of SUBARU OF AMERICA, INC.
