Unit Inspection

Inspection of the battery current sensor assembly

Resistance check (Battery current sensor assembly)

Resistance

Inspection terminals Tester positive - Tester negative	Inspection conditions	Standard value
1(VIN) - 3(GND)	Always	3 - 10 kΩ
1(VIN) - 4(VOUT)	Always	0.5 kΩ or less
3(GND) - 4(VOUT)	Always	3 - 10 kΩ

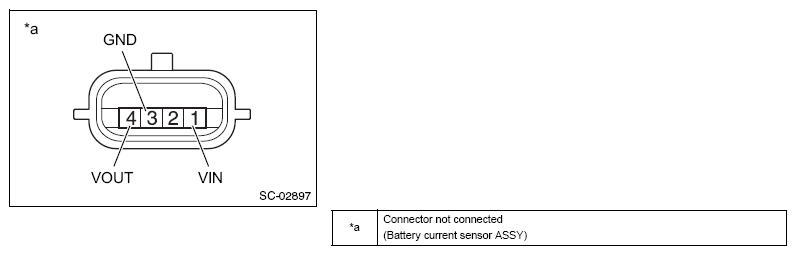

Fig 1: Battery Current Sensor Assembly Connector Terminal Identification

Courtesy of SUBARU OF AMERICA, INC.

Resistance check (Battery thermometer sensor).

Resistance

Inspection terminals	Inspection conditions	Standard value
2(TEMP) - 3(GND)	20 - 30°C {68 - 86°F}	1.5 - 2.6 kΩ

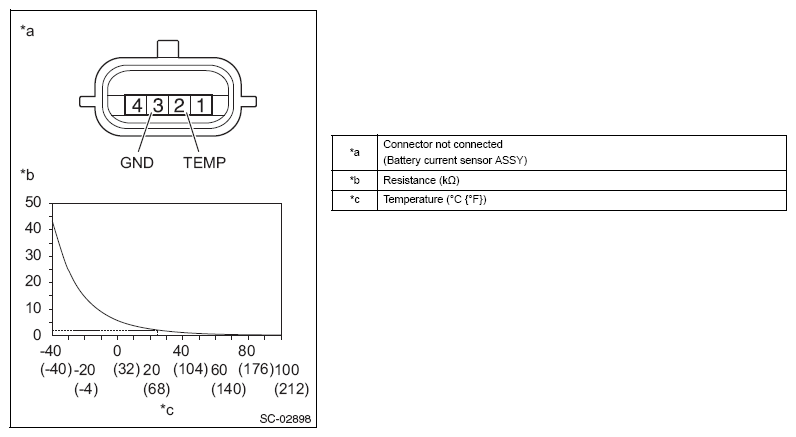

Fig 2: Battery Thermometer Sensor Connector Terminal Identification With Resistance Graph

Courtesy of SUBARU OF AMERICA, INC.

NOTE: The standard value expresses the temperature of the sensor surroundings, rather than the temperature of the temperature sensor unit.
