Engine Switch: Removal

  1. Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
  2. Console box cover FR removal (Refer to REMOVAL )
  3. Push button start switch removal
    1. Release the two claws from the back side of console box cover FR and remove the push button start switch.

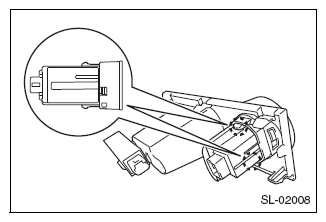

      Fig 1: Locating Push Button Start Switch Claws
      G08556824Courtesy of SUBARU OF AMERICA, INC.
