Unit Inspection

Push button start switch check

Resistance check

Measure the resistance between connector terminals.

Resistance

Inspection terminals	Inspection conditions	Standard value
5 (SSW1) - 6 (AGND)	When the switch is not pressed	10 k Ωor more
1 (SSW2) - 6 (AGND)	When the switch is not pressed	10 k Ωor more
5 (SSW1) - 6 (AGND)	When the switch is pressed	Less than 1 Ω
1 (SSW2) - 6 (AGND)	When the switch is pressed	Less than 1 Ω

NOTE: If the resistance is not within the standard value, replace the push button start switch.

LED illumination check

Connect the battery positive and negative to the connector terminals and check the LED illumination condition.

Criteria

Terminal No. (Battery positive - battery negative)	Criteria
9 (SWIL) - 6 (GND)	Character illumination lights up

NOTE: If the resistance is not within the standard value, replace the push button start switch.

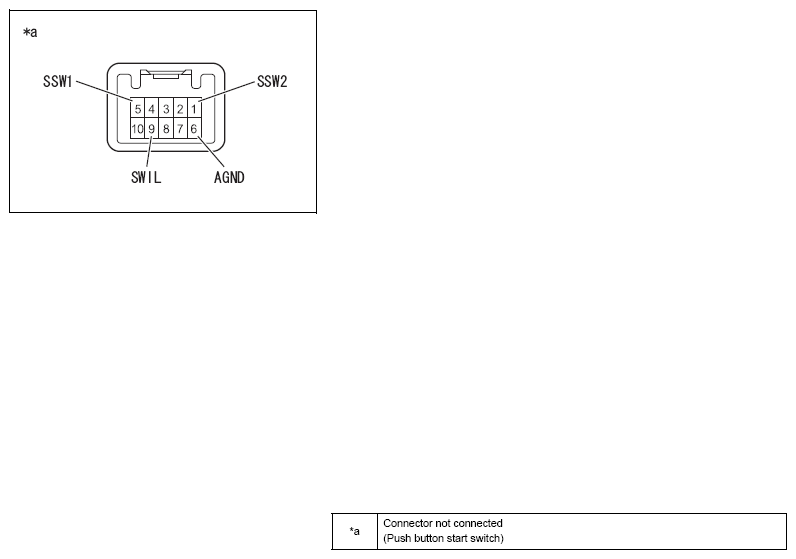

Fig 1: Checking Push Button Start Switch

Courtesy of SUBARU OF AMERICA, INC.
