Key Lock Unit: Removal

  1. Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
  2. Instrument side panel RH removal (Refer to DISASSEMBLY )
  3. Removal of glove compartment door assembly (Refer to DISASSEMBLY )
  4. Control unit relay assembly removal
    1. Disconnect the connector of control unit relay assembly.
    2. Remove the bolt and remove the control unit relay assembly.

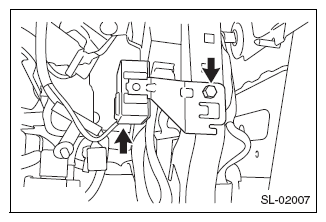

      Fig 1: Locating Control Unit Relay Assembly Connector And Bolt
      G08556830Courtesy of SUBARU OF AMERICA, INC.
