Accelerator Pedal Rod Assembly (Fa20): Removal

  1. Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
  2. Removal of accelerator pedal sensor assembly
    1. Disconnect the connector for accelerator pedal sensor assembly.
    2. Remove 2 nuts, and remove the accelerator pedal sensor assembly.

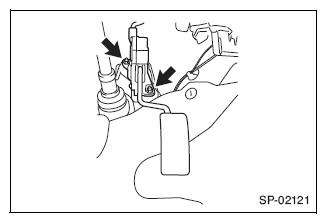

      Fig 1: Locating Accelerator Pedal Sensor Assembly Nuts
      G08554002Courtesy of SUBARU OF AMERICA, INC.
