Unit Inspection
- Inspection of air/fuel ratio sensor

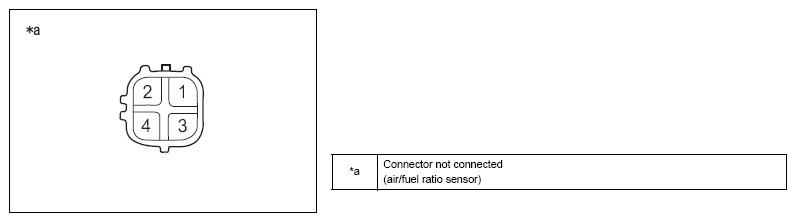

- Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
| 1 - 2 |
20°C {68°F} |
1.98 to 2.64 Ω |
| 1 - 4 |
Always |
10 k Ω or more |
Courtesy of SUBARU OF AMERICA, INC.
