Unit Inspection

  1. Crankshaft position sensor check
    1. Measure the resistance between the terminals.

      Resistance

      Inspection terminals Inspection conditions Resistance
      1 - 2 Always 1836 to 2244Ω

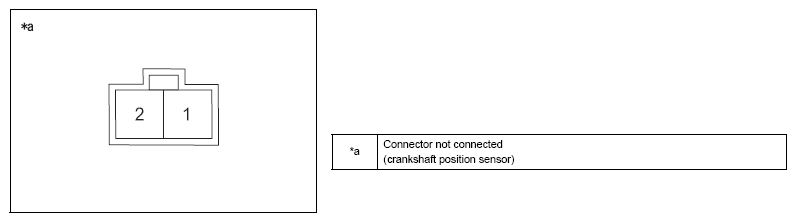

      Fig 1: Crankshaft Position Sensor Connector Terminal Identification
      G10213039Courtesy of SUBARU OF AMERICA, INC.
