Exploded View

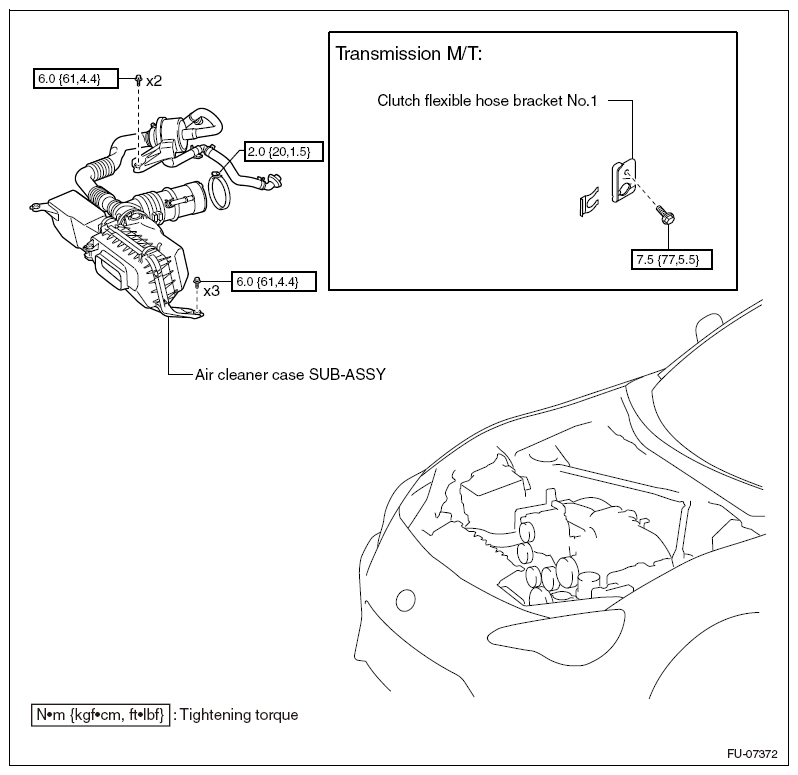

Fig 1: Exploded View Of Ignition Coil And Spark Plug With Torque Specifications (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

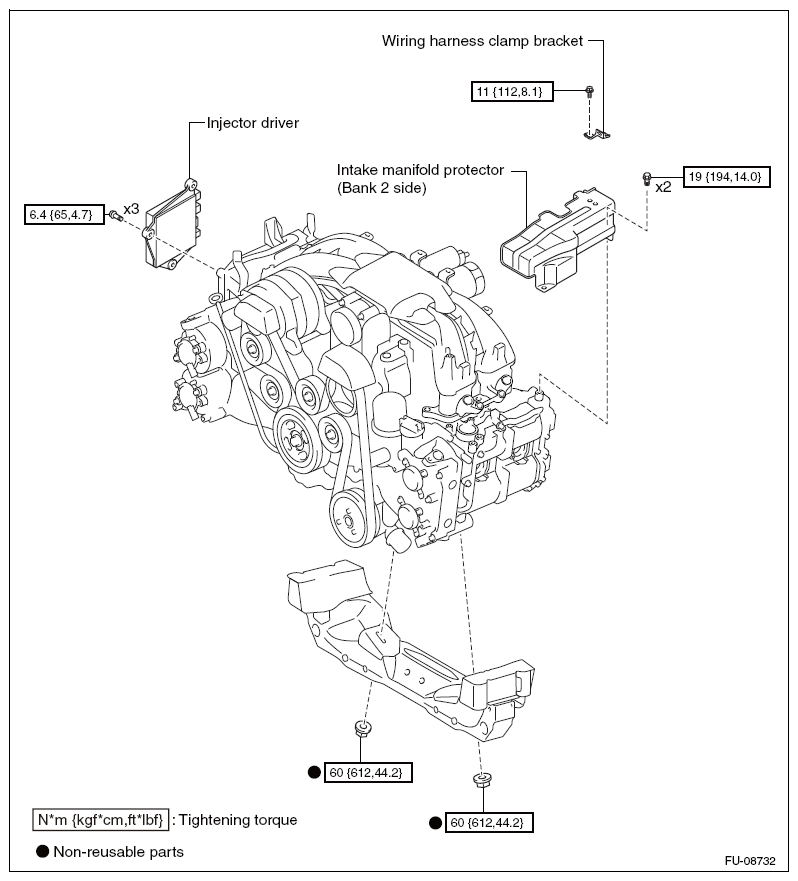

Fig 2: Exploded View Of Ignition Coil And Spark Plug With Torque Specifications (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

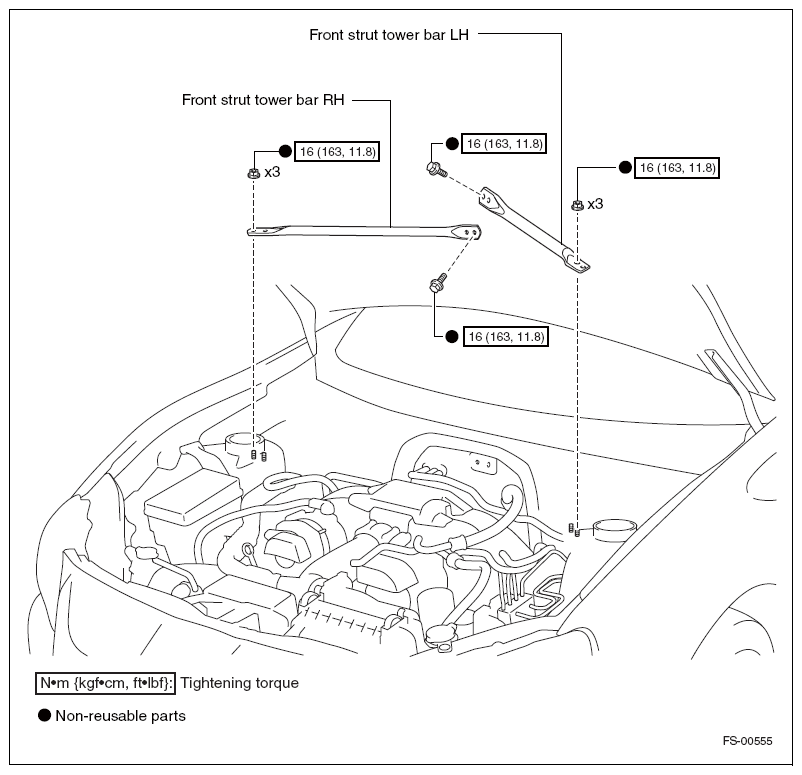

Fig 3: Exploded View Of Ignition Coil And Spark Plug With Torque Specifications (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

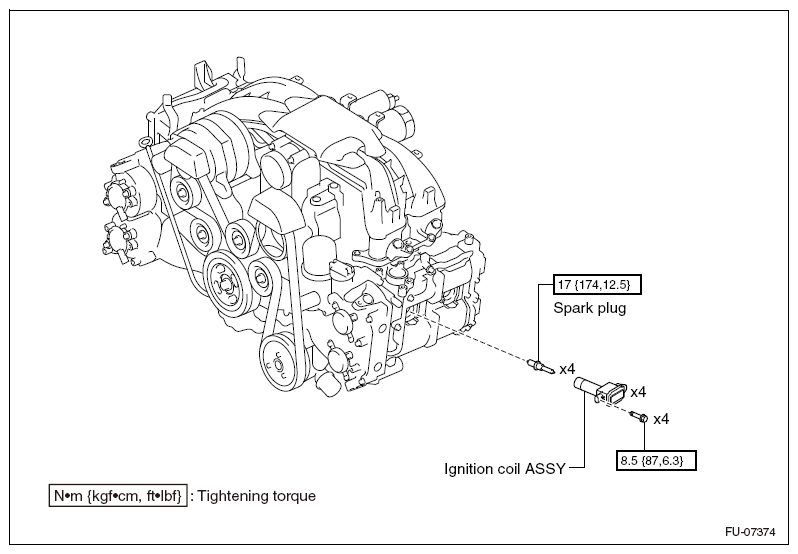

Fig 4: Exploded View Of Ignition Coil And Spark Plug With Torque Specifications (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
