Parts Location

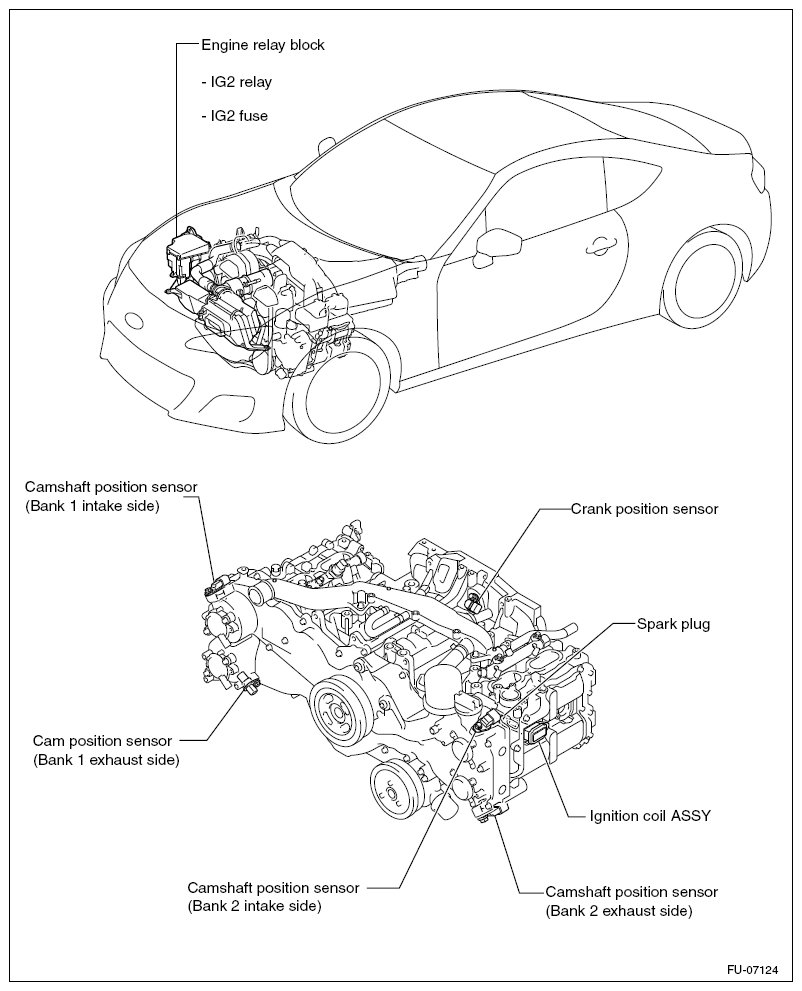

Fig 1: Ignition System Parts Location
G08553906Courtesy of SUBARU OF AMERICA, INC.

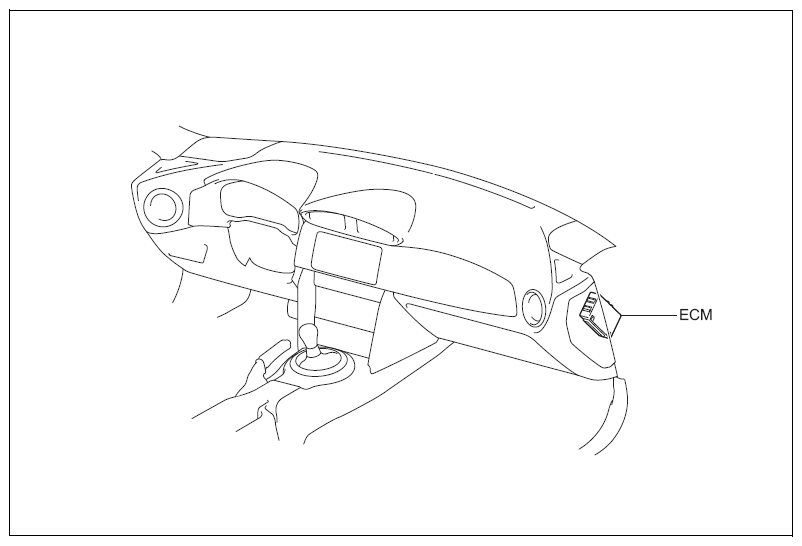

Fig 2: ECM Location
G10212982Courtesy of SUBARU OF AMERICA, INC.
