Intake Air Flow Meter Sub-Assembly (Fa20): Removal

  1. Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
  2. Removal of intake air flow meter sub-assembly
    1. Disconnect the connector for intake air flow meter sub-assembly.
    2. Remove 2 screws, and remove the intake air flow meter sub-assembly.

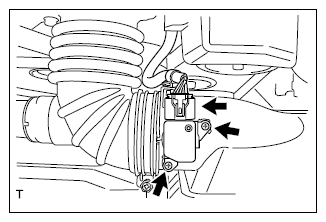

      Fig 1: Locating Intake Air Flow Meter Sub-Assembly Screws
      G10213028Courtesy of SUBARU OF AMERICA, INC.
