Oxygen Sensor (Fa20): Installation

1. Install the oxygen sensor to the exhaust manifold.

   Standard value: T=21N.m {214kgf.cm} {15.5ft.lbf}

2. Connect the connector for oxygen sensor and the 2 clamps.

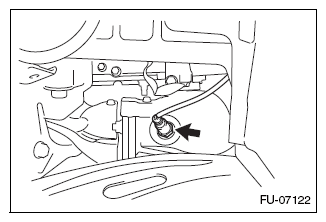

   Fig 1: Locating Oxygen Sensor Connector

   Courtesy of SUBARU OF AMERICA, INC.

1. Using 3 clips, install the under cover front side RH.

Standard value: T=6.0N.m {61kgf.cm} {4.4ft.lbf}
