Unit Inspection

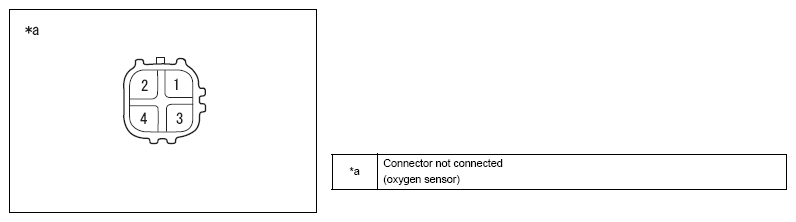

- Inspection of oxygen sensor
- Measure the resistance between the terminals.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
| 1 - 2 |
20°C {68°F} |
5.0 to 6.4Ω |
| 1 - 4 |
Always |
10 k Ωor more |
Courtesy of SUBARU OF AMERICA, INC.
