Throttle Body Assembly (Fa20): Removal

  1. Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
  2. Draining of coolant (SUBARU Super Coolant) (Refer to COOLANT (FA20) )
  3. Air cleaner case sub-assembly removal (Refer to V-BELT (FA20) )
  4. Removal of throttle body assembly (with motor)
    1. Disconnect the connector for the throttle body assembly (with motor).

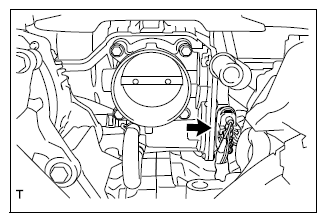

      Fig 1: Locating Throttle Body Assembly (With Motor) Connector
      G10213015Courtesy of SUBARU OF AMERICA, INC.
    2. Slide 2 clamps, and disconnect the water bypass hose No. 2 and water bypass hose No. 3 from the throttle body assembly (with motor).

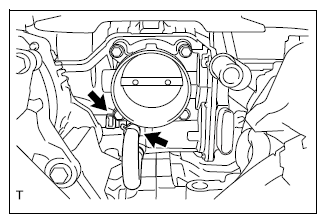

      Fig 2: Locating Throttle Body Assembly (With Motor) Clamps
      G10213016Courtesy of SUBARU OF AMERICA, INC.
    3. Remove 4 bolts, and remove the throttle body assembly (with motor) from the intake manifold.
    4. Remove the throttle body gasket from the intake manifold.

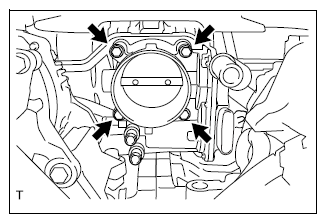

      Fig 3: Locating Throttle Body Assembly (With Motor) Bolts
      G10213017Courtesy of SUBARU OF AMERICA, INC.
