Unit Inspection

  1. Throttle body assembly (with motor) check
    1. Measure the resistance between the terminals.

      Resistance

      Inspection terminals Inspection conditions Standard value
      1 - 2 20°C {68°F} 0.3 to 10Ω

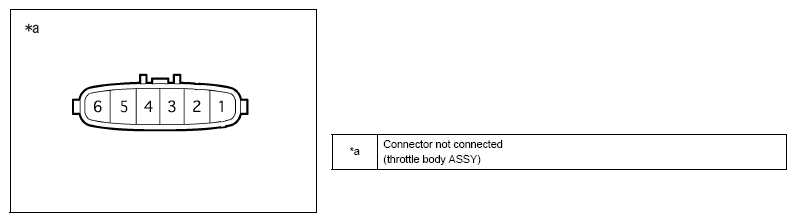

      Fig 1: Throttle Body Assembly Connector Terminal Identification
      G10213018Courtesy of SUBARU OF AMERICA, INC.
