Filler Pipe (Fa20): Installation

1. Open the fuel filler lid.
2. Insert the filler pipe from inside the rear fender.

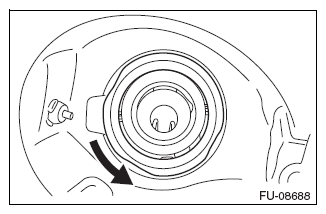

3. Align the cutout of the filler pipe protector with the protrusion of the neck holder. Insert the filler pipe protector all the way down and turn in the direction of the arrow to lock.
   Fig 1: Turning Filler Pipe Protector

   Courtesy of SUBARU OF AMERICA, INC.

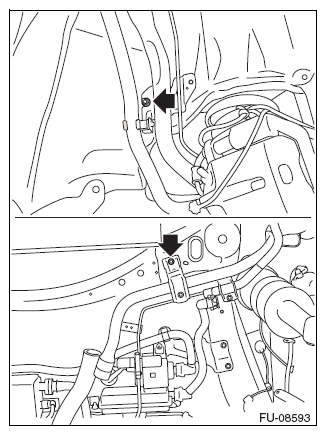

4. Install the filler pipe to the vehicle.

   Standard value: T=7.5 N.m {77 kgf.cm} {5.5 ft.lb}

   Fig 2: Locating Filler Pipe Bolts

   Courtesy of SUBARU OF AMERICA, INC.

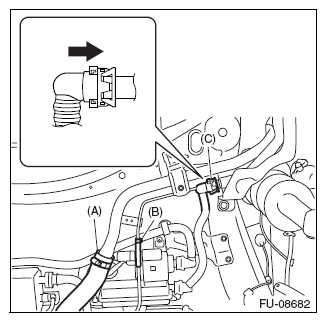

5. Connect the fuel tank to filler pipe hose (A) and the vent hose (B) to the filler pipe, and connect the quick connector of the drain tube (C).
   Fig 3: Connecting Fuel Tank And Vent Hose To Filler Pipe Hose

   Courtesy of SUBARU OF AMERICA, INC.

1. Install the rear mud guard RH with clips.

Standard value: T=6.0 N.m {61 kgf.cm} {4.4 ft.lb}
