Fuel Pressure Sensor (Fa20): Removal

(Refer to DISASSEMBLY )

1. Remove the 3 bolts.
2. Remove the fuel delivery pipe.

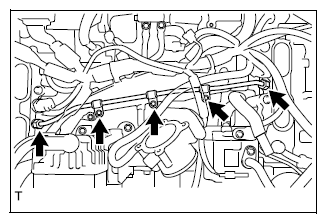

   Fig 1: Locating Fuel Delivery Pipe Bolts

   Courtesy of SUBARU OF AMERICA, INC.

1. Disconnect the fuel pressure sensor connector and two fuel injector connectors.

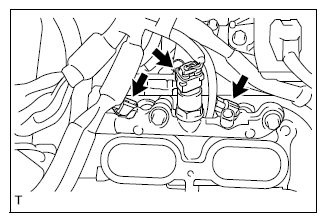

   Fig 2: Locating Fuel Pressure Sensor Connector And Fuel Injector Connectors

   Courtesy of SUBARU OF AMERICA, INC.
2. Remove the two bolts and remove fuel delivery pipe (bank 1 side).

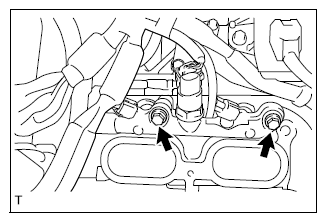

   Fig 3: Locating Fuel Delivery Pipe Bolts

   Courtesy of SUBARU OF AMERICA, INC.

1. Remove the fuel pressure sensor from the fuel delivery pipe (bank 1 side).

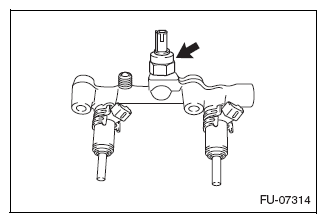

   Fig 4: Locating Fuel Pressure Sensor

   Courtesy of SUBARU OF AMERICA, INC.
