Fuel Pump Assembly (Fa20): Assembly

Fuel pressure regulator installation

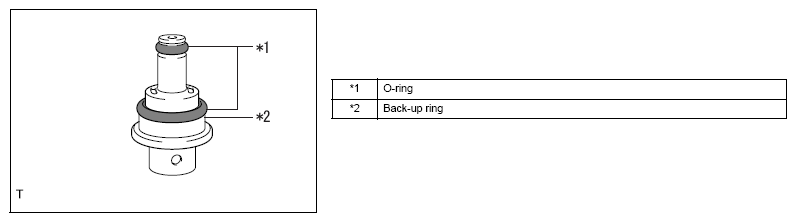

1. Apply gasoline to two new O-rings and back-up ring, and then install them to the fuel pressure regulator.

  Fig 1: Locating Fuel Pressure Regulator O-Rings And Back-Up Ring
  Courtesy of SUBARU OF AMERICA, INC.

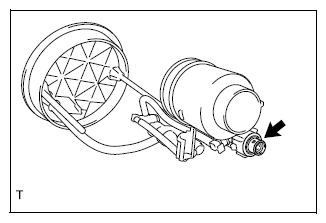

2. Install the fuel pressure regulator to the fuel filter.
  CAUTION: Install it so that the O-ring is not cut or pinched.

  Fig 2: Locating Fuel Pressure Regulator
  Courtesy of SUBARU OF AMERICA, INC.
Fuel pump installation

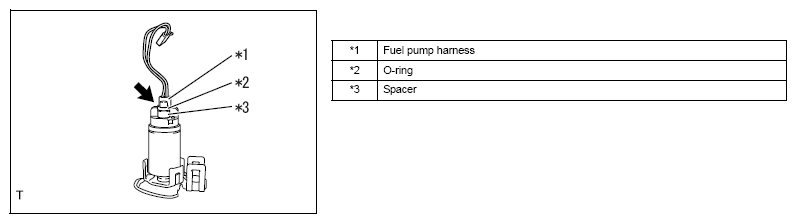

1. Attach the spacer and a new O-ring to the fuel pump.
2. Connect the connector and connect a new fuel pump harness.

  Fig 3: Locating Fuel Pump Harness, O-Ring And Spacer
  Courtesy of SUBARU OF AMERICA, INC.

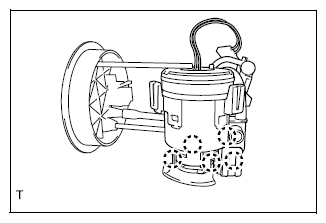

3. Apply a coat of gasoline to the O-ring and install the fuel pump to the fuel filter.
  CAUTION: Install it so that the O-ring is not cut or pinched.

  Fig 4: Installing Fuel Pump
  Courtesy of SUBARU OF AMERICA, INC.
Fuel sub tank installation
1. Set the fuel suction plate on the fuel sub tank through the spring.

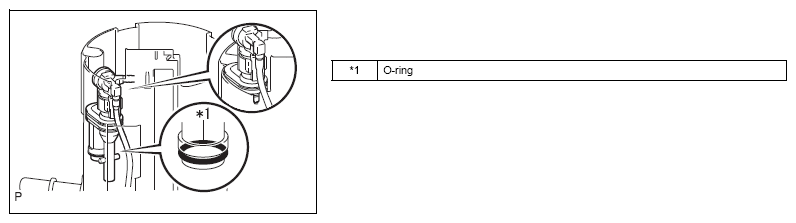

2. Apply a coat of gasoline to a new O-ring and install it to the jet pump.

  Fig 5: Locating Jet Pump O-Ring
  Courtesy of SUBARU OF AMERICA, INC.
3. Install the jet pump to the fuel sub tank.
  CAUTION:
  - Install it so that the O-ring is not cut or pinched.
  - Be sure to engage the claw.

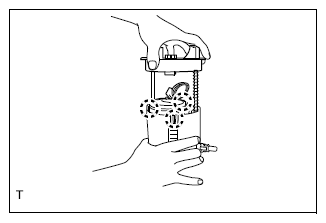

4. Engage the three claws and install the fuel filter to the fuel sub tank.

  Fig 6: Installing Fuel Filter To Fuel Sub Tank
  Courtesy of SUBARU OF AMERICA, INC.

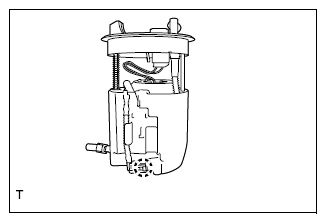

5. Engage the claw and install the jet pump nozzle to the fuel sub tank.

  Fig 7: Locating Jet Pump Nozzle
  Courtesy of SUBARU OF AMERICA, INC.

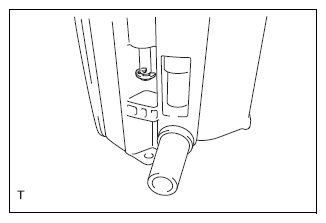

6. Install a new E-ring.

  Fig 8: Locating E-Ring
  Courtesy of SUBARU OF AMERICA, INC.
7. Connect the fuel pump harness connector and install the harness to the four clamps.

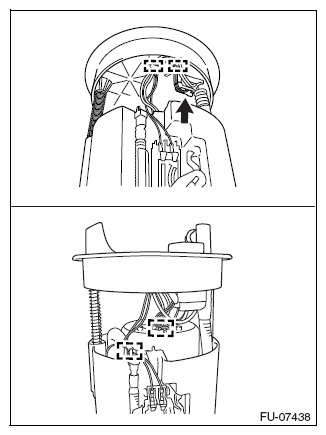

  Fig 9: Connecting Fuel Pump Harness Connector
  Courtesy of SUBARU OF AMERICA, INC.
Fuel sender gauge Assembly installation (Refer to INSTALLATION )
