Circuit Figure

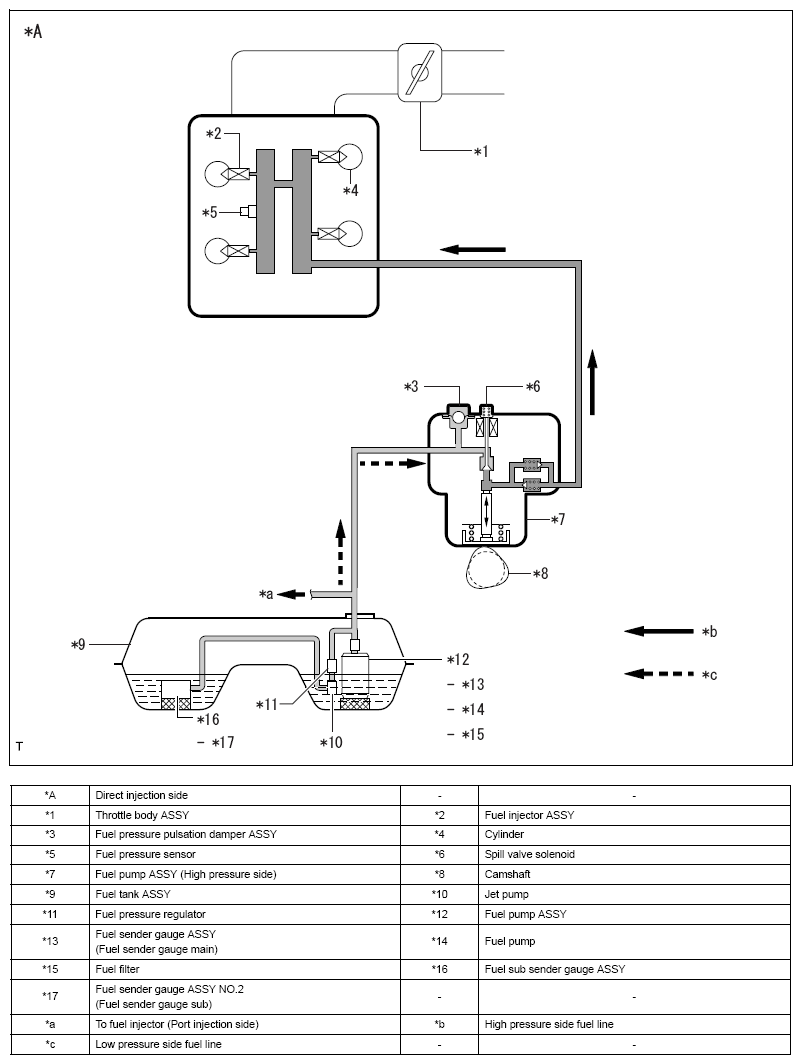

Fig 1: Fuel Injection System Circuit Diagram (Direct Injection Side)

G10213398

Courtesy of SUBARU OF AMERICA, INC.

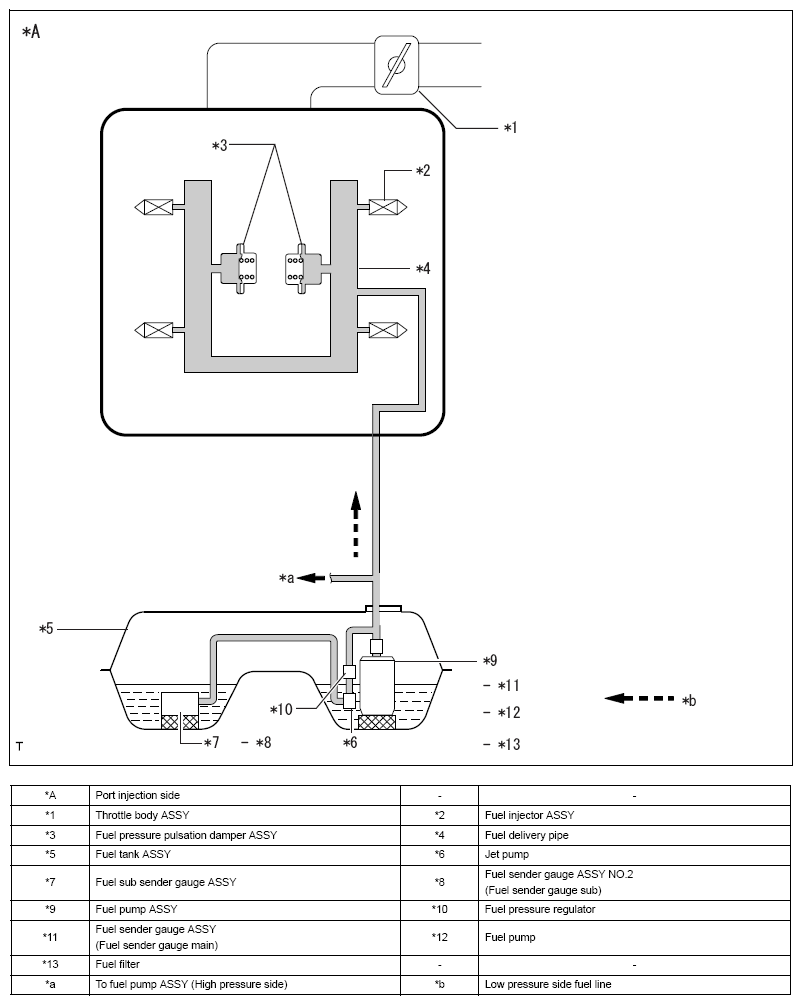

Fig 2: Fuel Injection System Circuit Diagram (Port Injection Side)

G10213399

Courtesy of SUBARU OF AMERICA, INC.

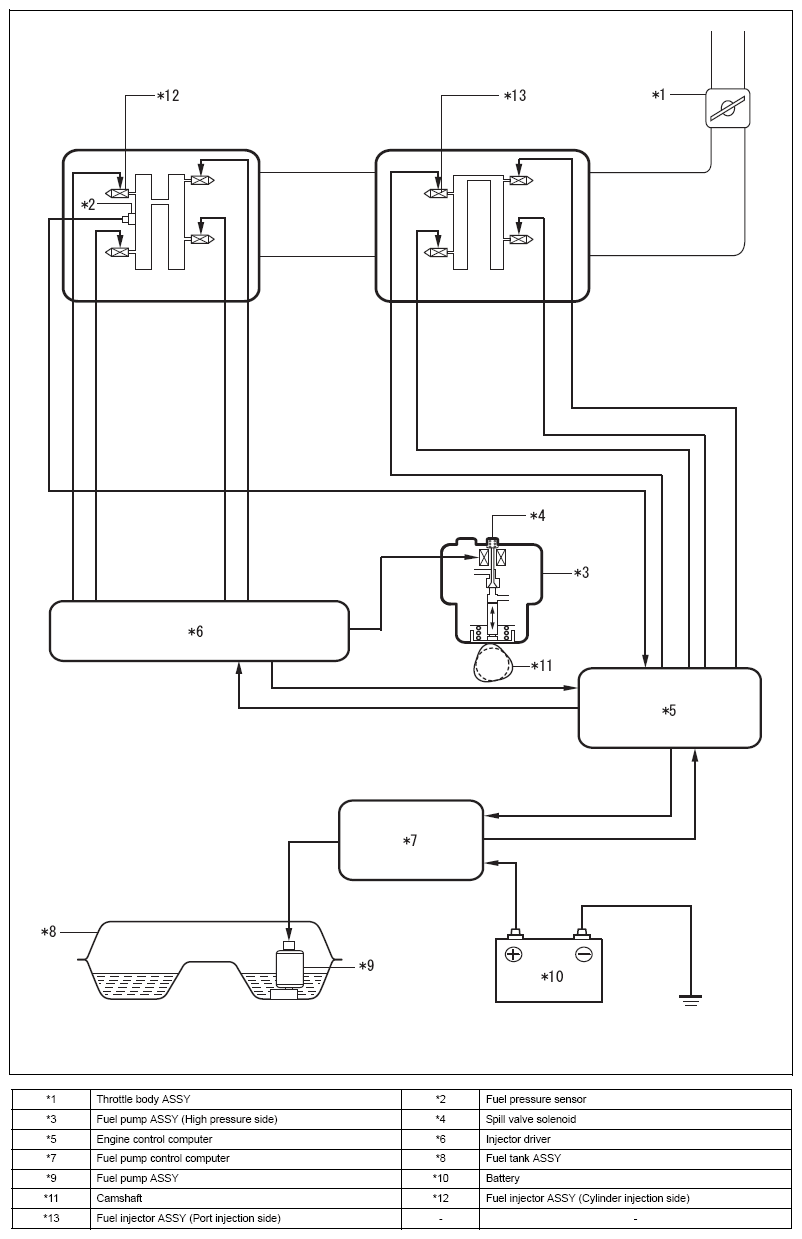

Fig 3: Fuel Injection System Circuit Diagram (Complete System)

G10213400

Courtesy of SUBARU OF AMERICA, INC.

Fuel injector Assembly (Cylinder injection side)

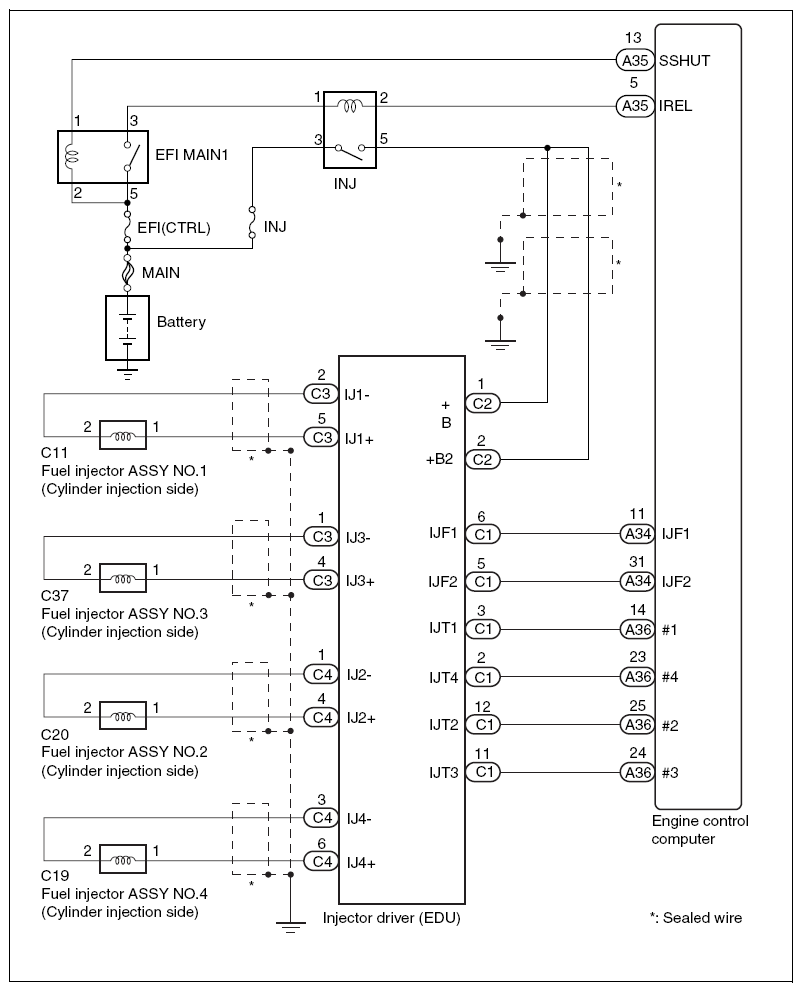

Fig 4: Fuel Injector Assembly Circuit Diagram (Cylinder Injection Side; 1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

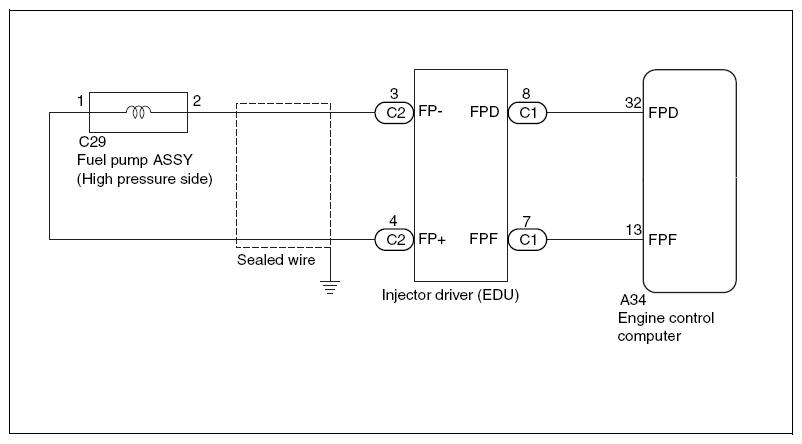

Fig 5: Fuel Injector Assembly Circuit Diagram (Cylinder Injection Side; 2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Fuel injector Assembly (Port injection side)

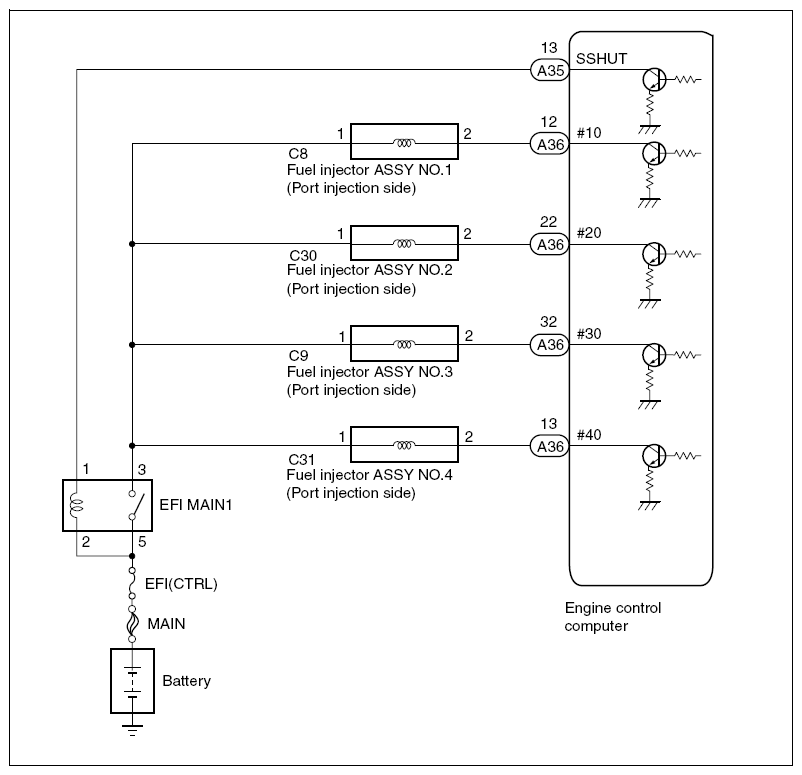

Fig 6: Fuel Injector Assembly Circuit Diagram (Port Injection Side; 1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

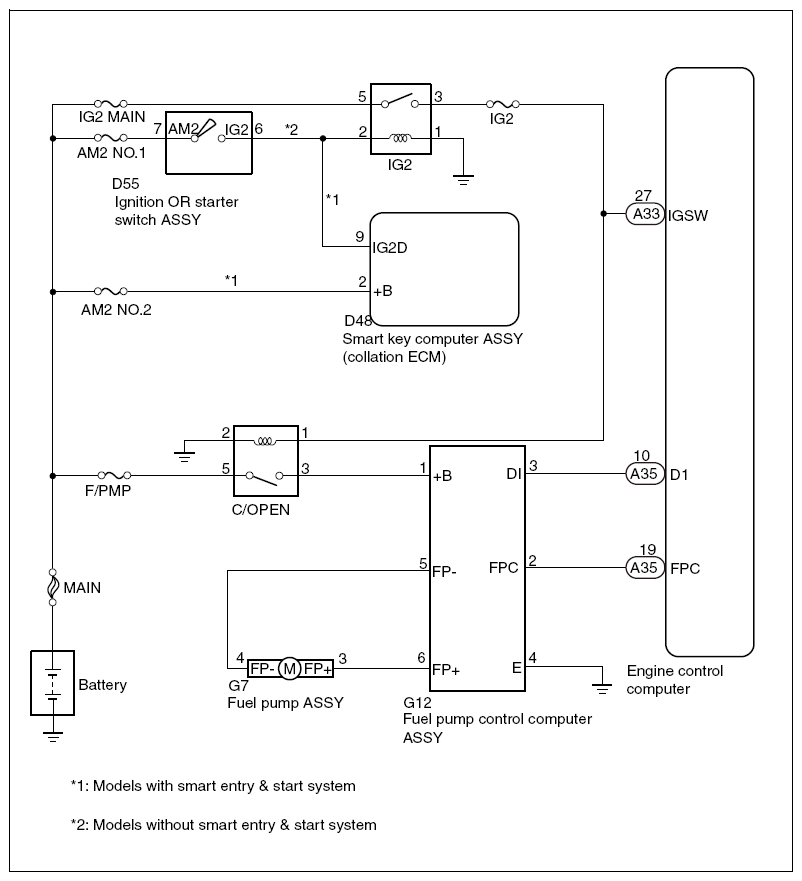

Fig 7: Fuel Injector Assembly Circuit Diagram (Port Injection Side; 2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
