Injector Driver (Fa20): Removal

Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
Injector driver removal
1. Move the lock lever in the direction of arrow to unlock the three connectors.

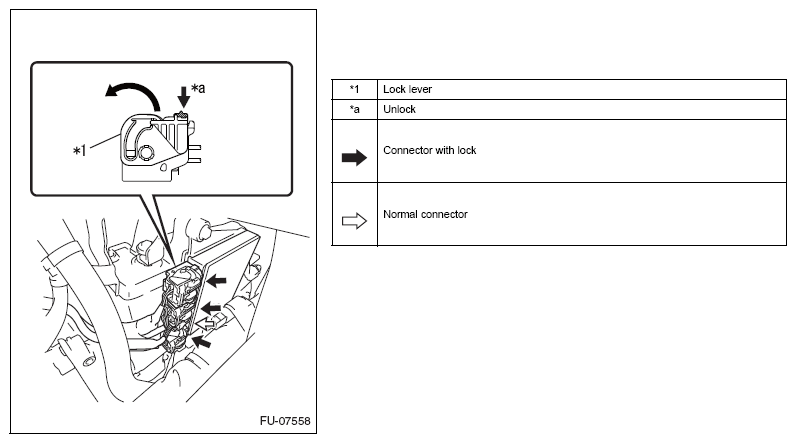

  Fig 1: Moving Injector Driver Lock Lever
  Courtesy of SUBARU OF AMERICA, INC.
2. Disconnect the three connectors with lock and normal connector from the injector driver.
3. Remove the three bolts and remove the injector driver.
  CAUTION: Do not apply any impact to the injector driver.

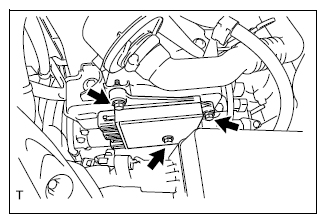

  Fig 2: Locating Injector Driver Bolts
  Courtesy of SUBARU OF AMERICA, INC.
