Parts Location

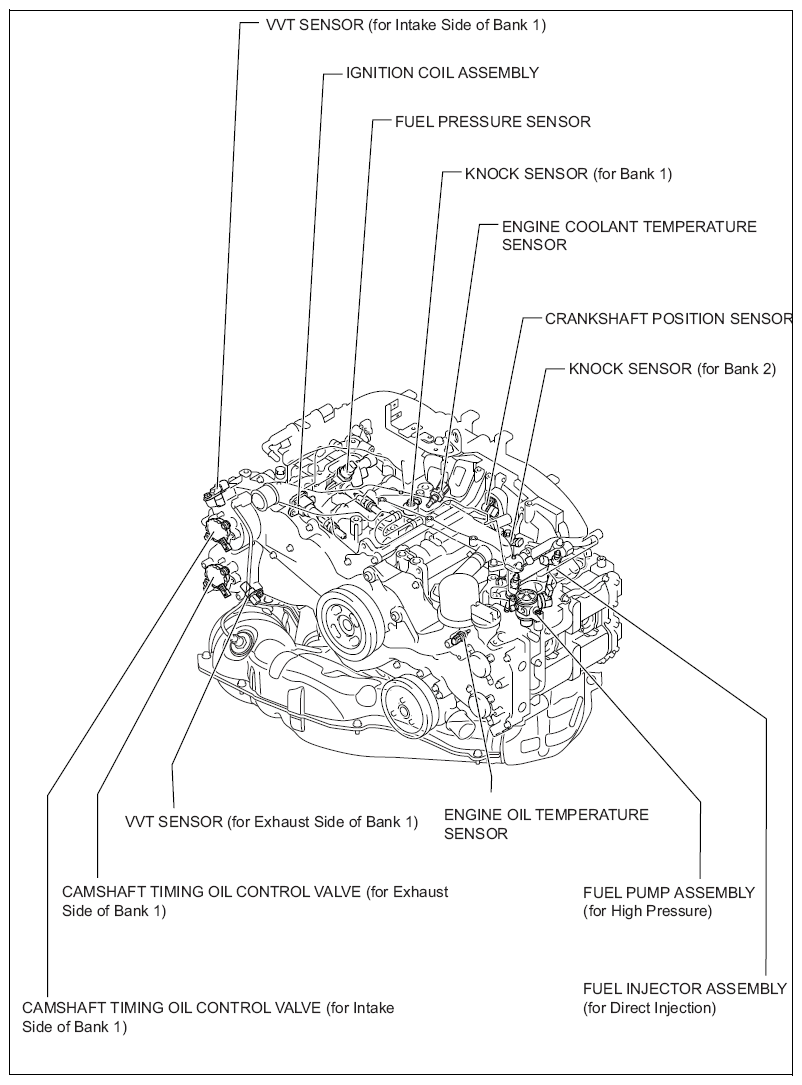

Fig 1: Engine Control Parts Location (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

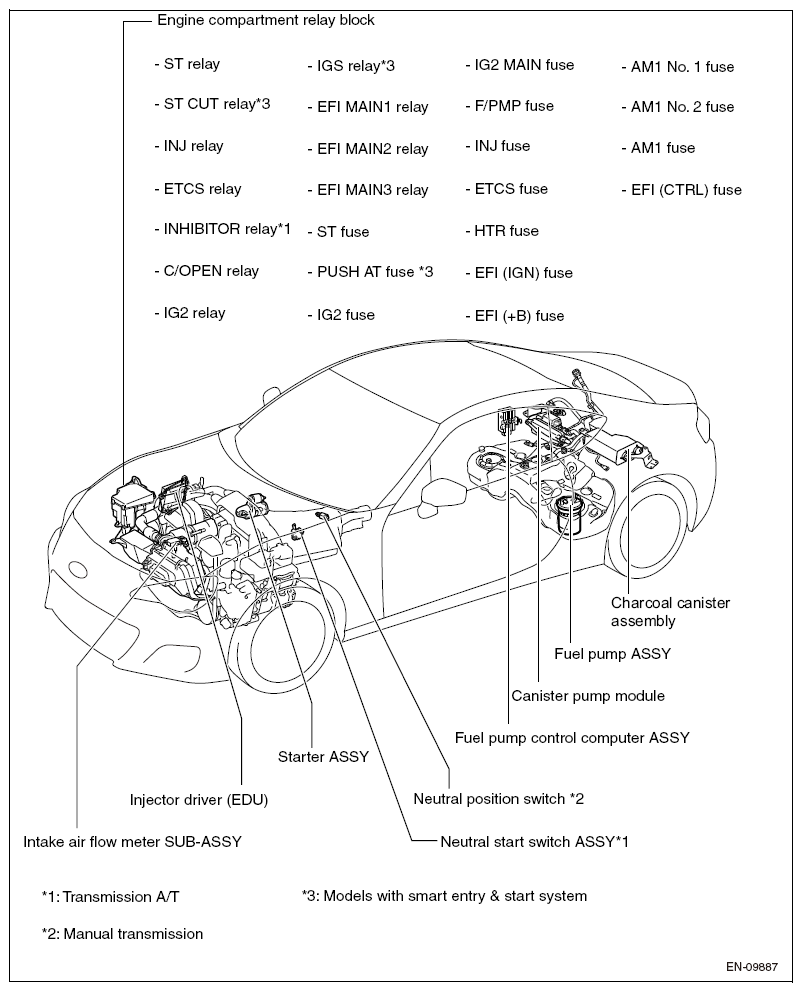

Fig 2: Engine Control Parts Location (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

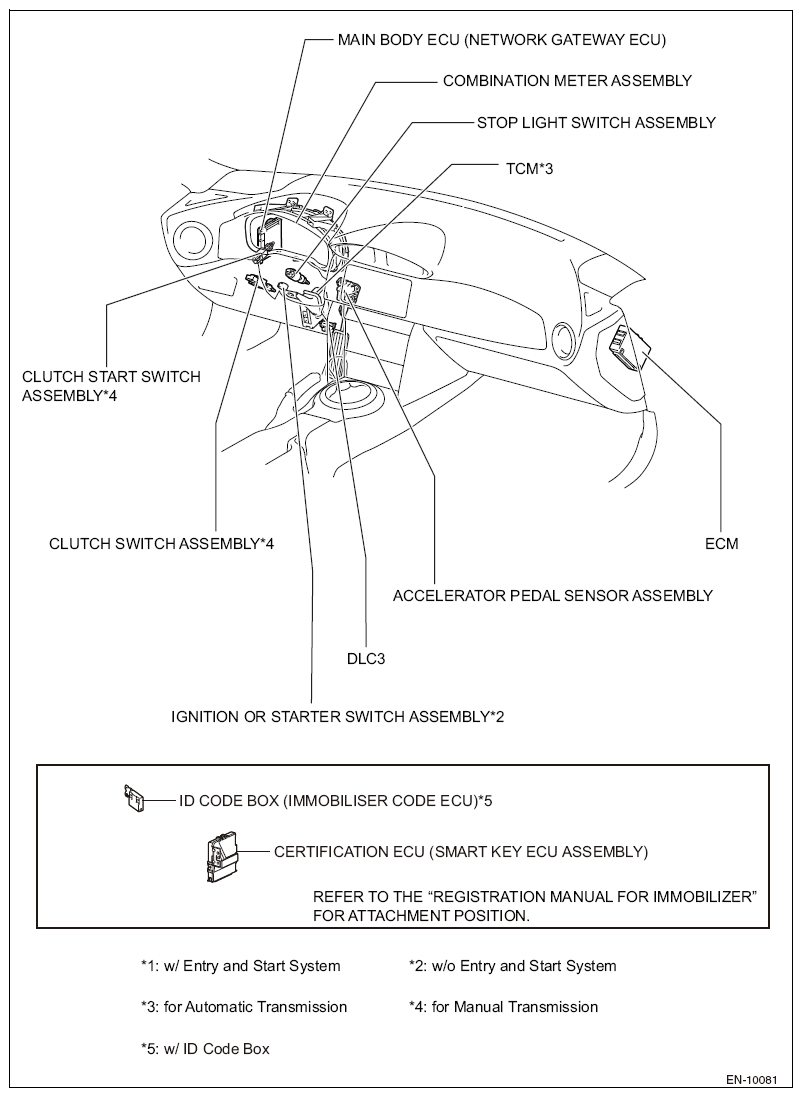

Fig 3: Engine Control Parts Location (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

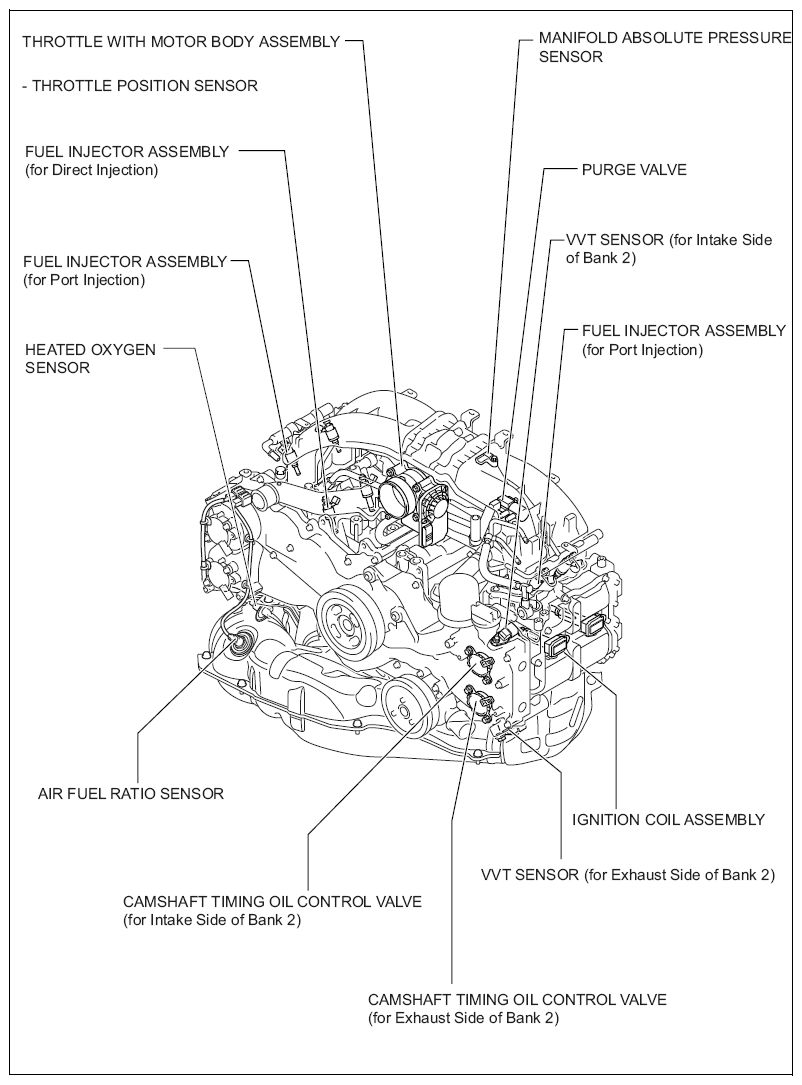

Fig 4: Engine Control Parts Location (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
