Circuit description: Notes

The brake override system suppresses the driving torque when the brake pedal is depressed with the accelerator pedal depressed while driving. The following describes the control operation condition and the control content.

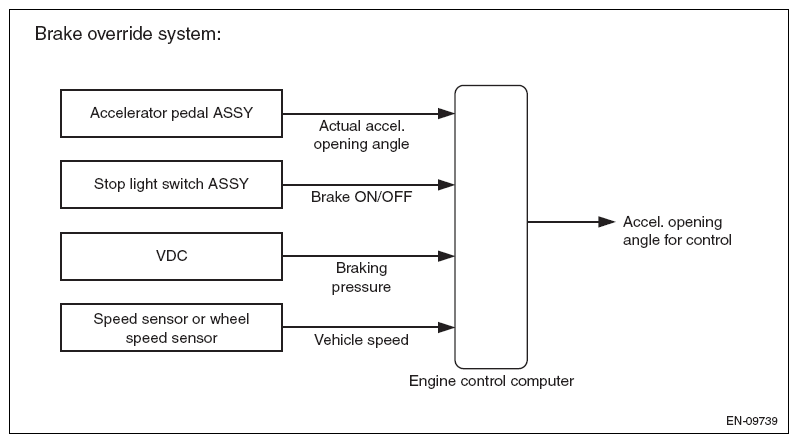

Fig 1: Brake Override System Diagram
G08553893Courtesy of SUBARU OF AMERICA, INC.
