Engine Control System Diagnostics - System & Circuit Checks
>>
Fuel Pump Control System
>>
Circuit figure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit figure

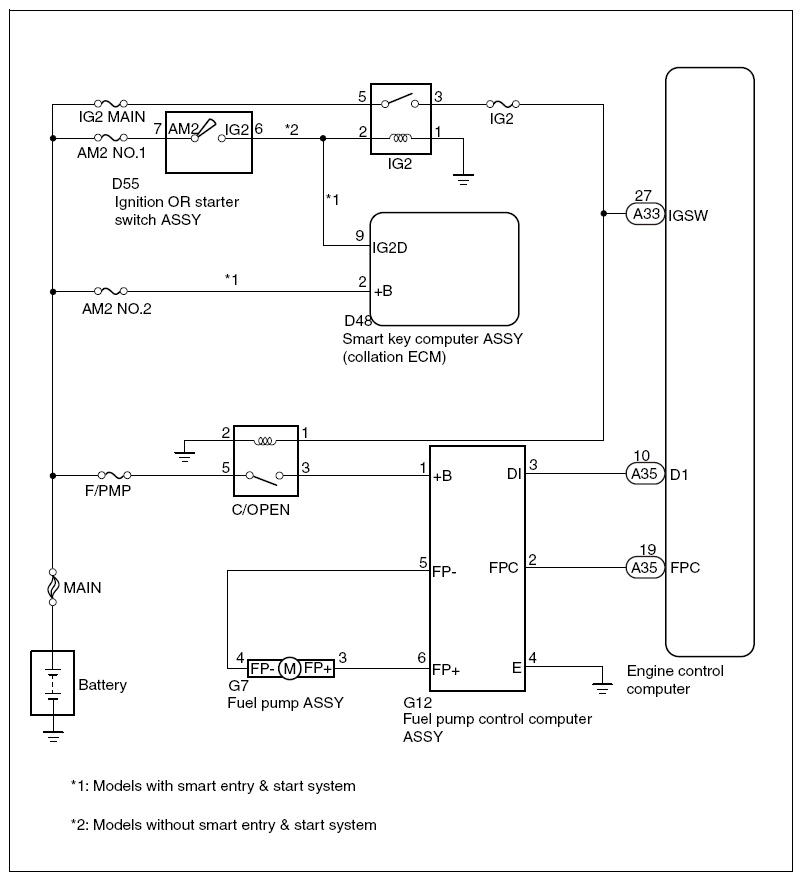

Fig 1: Fuel Pump Control System Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
