Engine Control System Diagnostics - System & Circuit Checks
>>
VC Power Supply Circuit
>>
Circuit figure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit figure

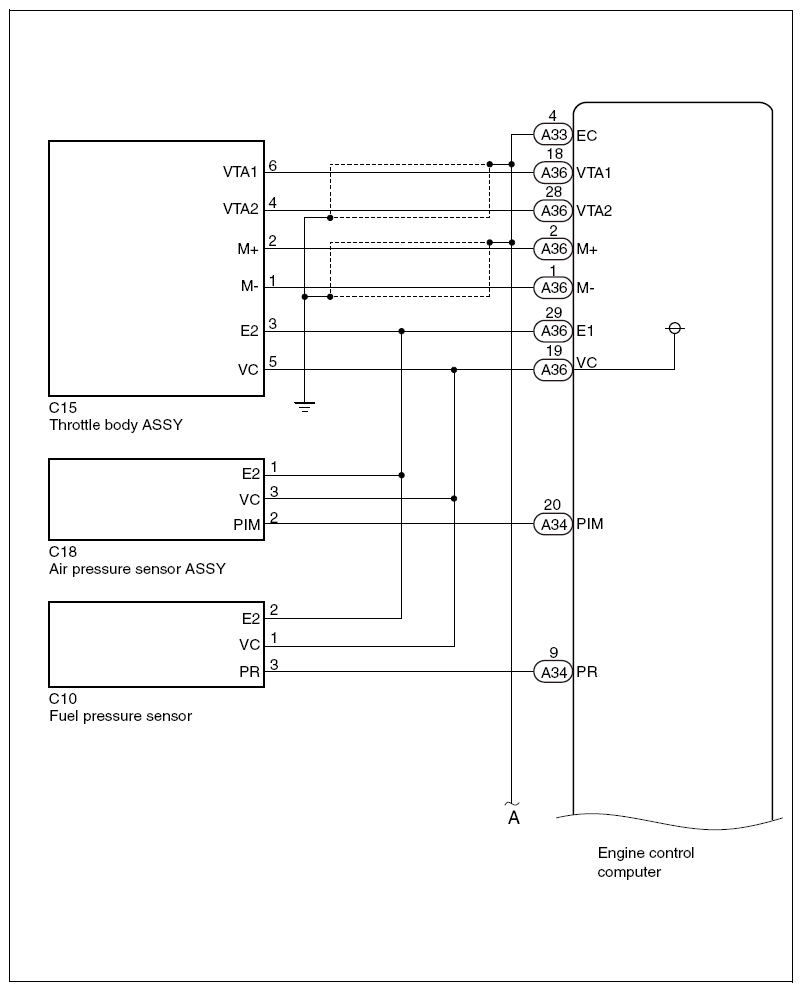

Fig 1: VC Power Supply Circuit Diagram (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: VC Power Supply Circuit Diagram (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
