Engine Coolant Temperature Sensor: Installation
Install in the reverse order of removal.
NOTE:
Use a new gasket.
Tightening torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)

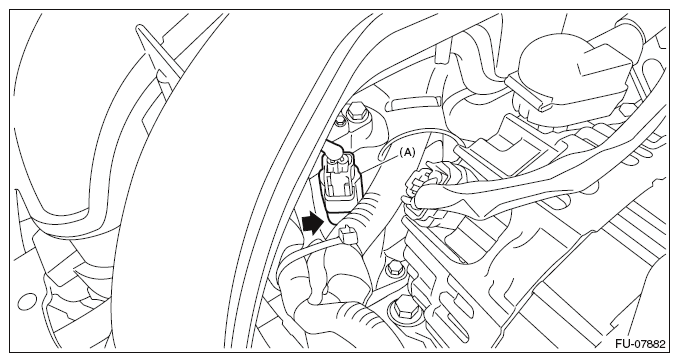

Fig 1: Locating Engine Coolant Temperature Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
