Engine Wiring Harness: Removal

Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the intake manifold. < Ref. to REMOVAL , Intake Manifold. >
Disconnect the connector from the engine.
- Structural diagram 1

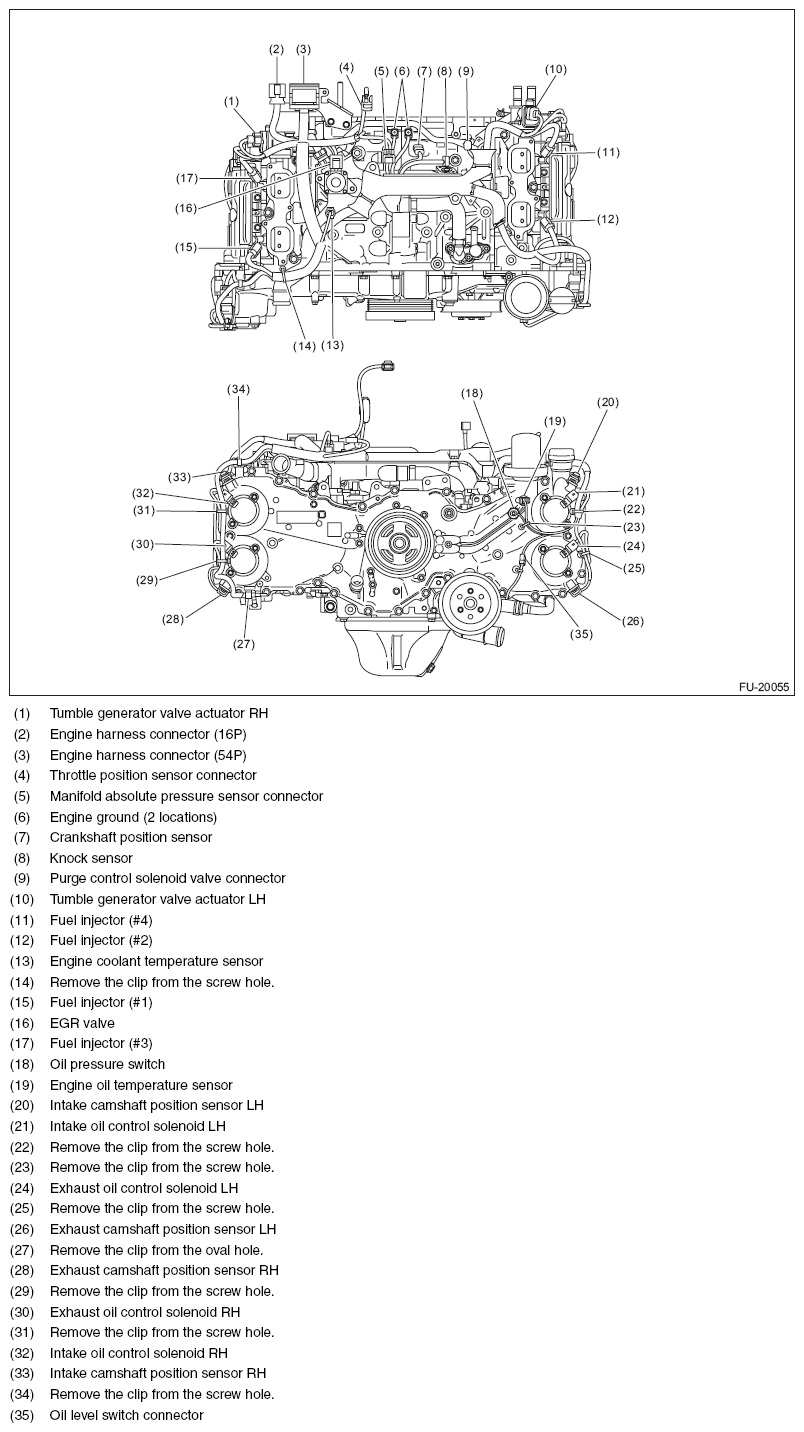

  Fig 2: Engine Wiring Harness Structural Diagram 1
  Courtesy of SUBARU OF AMERICA, INC.
- Structural diagram 2

  Fig 3: Engine Wiring Harness Structural Diagram 2
  Courtesy of SUBARU OF AMERICA, INC.
Remove the engine wiring harness.

Fig 4: Locating Engine Wiring Harness Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
