Fuel Tank Protector: Removal

  1. Lift up the vehicle.
  2. Remove the bolt and nuts and remove the fuel tank protector.
    • Impreza model

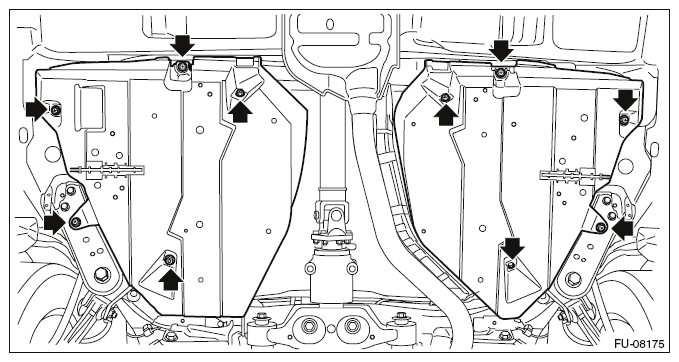

      Fig 1: Locating Fuel Tank Protector Bolt And Nuts (Impreza Model)
      G09477091Courtesy of SUBARU OF AMERICA, INC.
    • Crosstrek model
      Fig 2: Locating Fuel Tank Protector Bolt And Nuts (Crosstrek Model)
      G09475612Courtesy of SUBARU OF AMERICA, INC.
