Fuel Pump

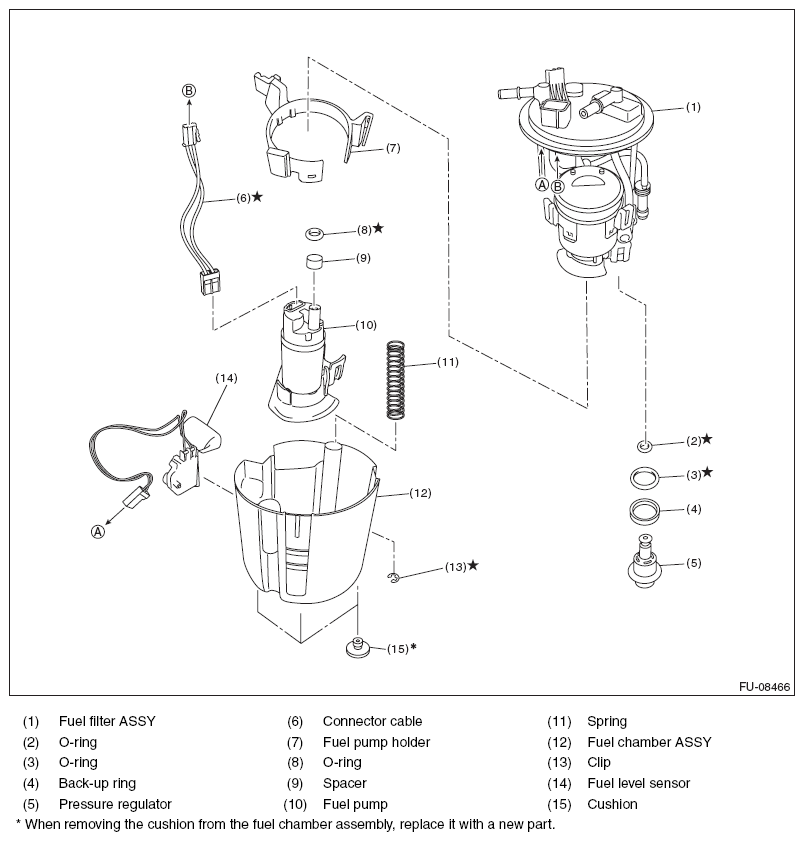

Fig 1: Identifying Fuel Pump Related Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
