Knock Sensor: Installation

Install the knock sensor to the cylinder block.
NOTE: The knock sensor should be installed so that the center of the connector is positioned at a 76.5 - 91.5° angle relative to the front of engine.

Tightening torque:

24 N.m (2.4 kgf-m, 17.7 ft-lb)

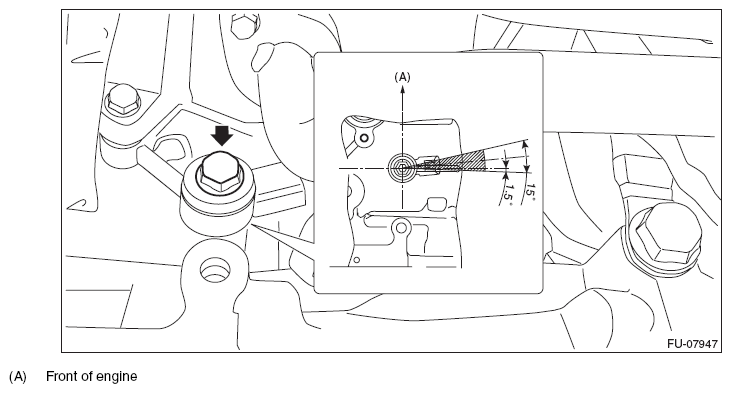

Fig 1: Identifying Knock Sensor Bolt Tightening Angle
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the knock sensor.

Fig 2: Locating Knock Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake boot. < Ref. to INSTALLATION , Air Intake Boot. >
Connect the battery ground terminal.

Fig 3: Connecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
