Check Motor

  1. Connect the battery positive terminal to terminal No. 5 and the battery ground terminal to terminal No. 4, and check that the valve is fully opened on LH side and the valve is fully closed on RH side.
    CAUTION: Do not power the motor for more than 10 seconds.

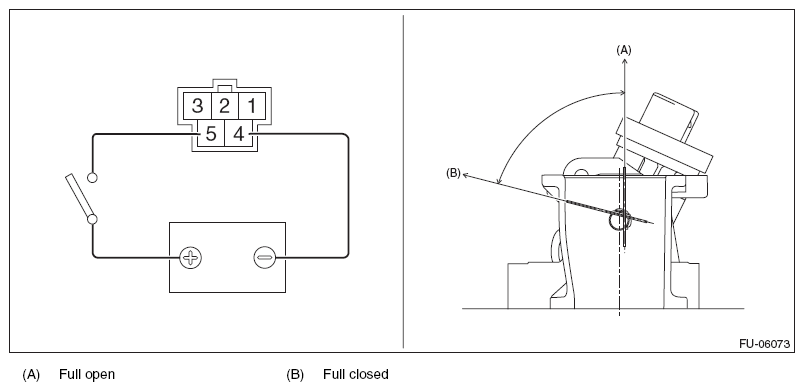

    Fig 1: Connecting Battery Positive Terminal To Terminal No. 5 And Battery Ground Terminal To Terminal No. 4
    G10318340Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the battery positive terminal to terminal No. 4 and the battery ground terminal to terminal No. 5, and check that the valve is fully closed on LH side and the valve is fully opened on RH side.
    CAUTION: Do not power the motor for more than 10 seconds.

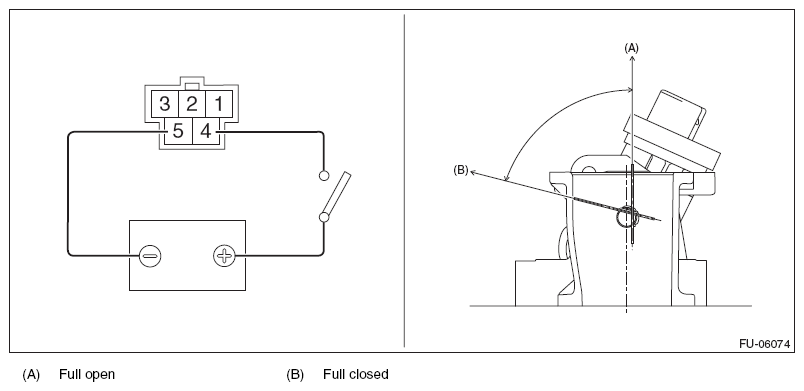

    Fig 2: Connecting Battery Positive Terminal To Terminal No. 4 And Battery Ground Terminal To Terminal No. 5
    G10318341Courtesy of SUBARU OF AMERICA, INC.
