Check Accelerator Pedal Sensor Area (Method With Circuit Tester)

  1. Remove the glove box. < Ref. to REMOVAL , Glove Box. >
  2. Turn the ignition switch to ON. (Engine OFF)
  3. Measure the voltage between ECM connector terminals.
    Fig 1: Identifying ECM Connector
    G08315329
    • Main sensor side

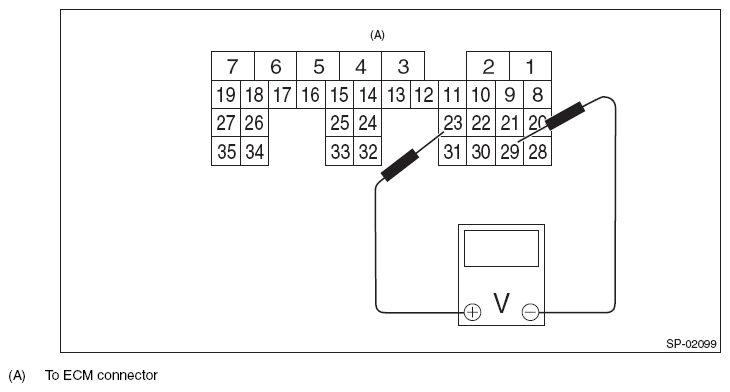

      Fig 2: Identifying ECM Connector Terminals - Main Sensor Side
      G10318923
    • Sub sensor side

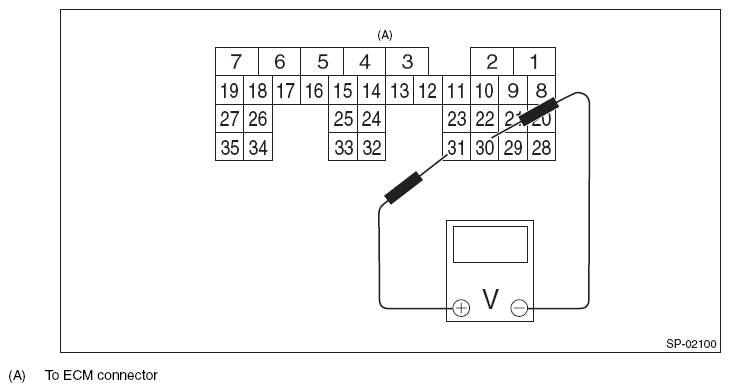

      Fig 3: Identifying ECM Connector Terminals - Sub Sensor Side
      G10318924
      Accelerator pedal sensor Accelerator pedal Terminal No. Standard
      Main Not depressed (full closed) 23 (+) and 29 (-) 0.4 - 1.0 V
      Depressed (full opened) 2.4 - 3.7 V
      Sub Not depressed (full closed) 31 (+) and 30 (-) 0.3 - 1.1 V
      Depressed (full opened) 2.3 - 3.8 V
  4. After inspection, install the related parts in the reverse order of removal.
